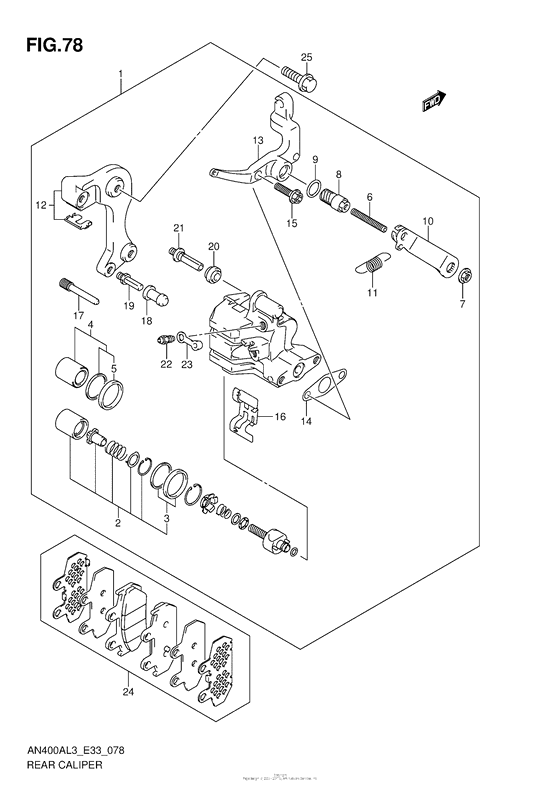

Rear Caliper Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-05H31-999 CALIPER ASSY,RR |
69100-05H31-999 |
from US $392.48 |
||
|
2
|
2
69100-43810-000 PISTON SET |
69100-43810-000 |
from US $36.80 |
||
|
3
|
3
69100-36810-000 SEAL SET,PISTON |
69100-36810-000 |
from US $10.34 |
||
|
4
|
4
69100-10830-000 PISTON SET |
69100-10830-000 |
from US $41.22 |
||
|
5
|
5
69100-36810-000 SEAL SET,PISTON |
69100-36810-000 |
from US $10.34 |
||
|
6
|
6
69127-10G00-000 Bolt |
69127-10G00-000 |
from US $6.56 |
||
|
7
|
7
69123-14F40-000 NUT |
69123-14F40-000 |
from US $1.92 |
||
|
8
|
8
69124-10G00-000 SHAFT |
69124-10G00-000 |
US $18.58 |
||
|
9
|
9
69122-14F40-000 O RING |
69122-14F40-000 |
from US $4.01 |
||
|
10
|
10
69125-05H00-000 ARM |
69125-05H00-000 |
from US $15.64 |
||
|
11
|
11
69128-14F00-000 SPRING,RETURN |
69128-14F00-000 |
from US $2.08 |
||
|
12
|
12
69150-05H10-000 BRACKET |
69150-05H10-000 |
from US $57.60 |
||
|
13
|
13
69120-05H10-000 PARKING |
69120-05H10-000 |
from US $70.66 |
||
|
14
|
14
69126-14F40-000 PACKING |
69126-14F40-000 |
from US $1.60 |
||
|
15
|
15
69121-14F00-000 BOLT(8X25) |
69121-14F00-000 |
US $3.24 |
||
|
16
|
16
69115-10G00-000 SPRING,PAD |
69115-10G00-000 |
from US $8.65 |
||
|
17
|
17
59345-13E00-000 PIN,HANGER |
59345-13E00-000 |
from US $8.10 |
||
|
18
|
18
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
|
19
|
19
59382-14500-000 PIN,BOLT |
59382-14500-000 |
from US $3.34 |
||
|
20
|
20
59303-14500-000 BOOT |
59303-14500-000 |
from US $2.89 |
||
|
21
|
21
59305-27C00-000 PIN |
59305-27C00-000 |
from US $8.21 |
||
|
22
|
22
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $11.76 |
||
|
23
|
23
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
|
24
|
24
69102-05890-000 PAD & SHIM SET |
69102-05890-000 |
from US $75.31 |
||
|
25
|
25
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
