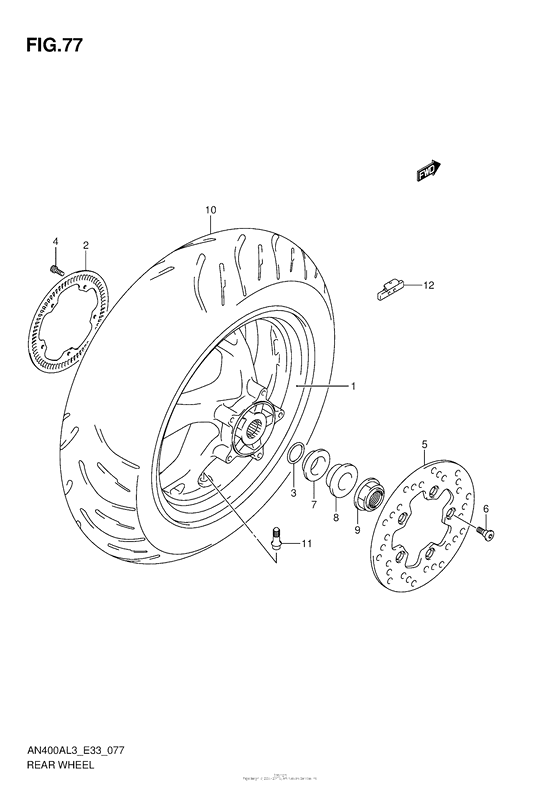

Rear Wheel (An400Zal3 E28) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-05H10-YMY WHEEL,RR(13M/CXMT4.00) |
64110-05H10-YMY |
from US $746.24 |
||
|
2
|
2
64162-05H00-000 RING,SPEED SENSOR RR(72T) |
64162-05H00-000 |
from US $17.44 |
||
|
3
|
3
09280-24003-000 O RING(D:3,ID:24.5)O ring, outer |
09280-24003-000 |
from US $1.67 |
||
|
4
|
4
07130-0512A-000 BOLTBolt, pulser/clamp |
07130-0512A-000 |
from US $0.91 |
||
|
5
|
5
69211-05H00-000 DISC,RR BRAKE |
69211-05H00-000 |
from US $156.80 |
||
|
6
|
6
09106-08160-000 BOLT(8X21)Bolt, brake disc |
09106-08160-000 |
from US $1.67 |
||
|
7
|
7
64741-05H00-000 SPACER,RR AXLE INNER |
64741-05H00-000 |
from US $16.96 |
||
|
8
|
8
64751-05H00-000 SPACER,RR AXLE OUTER |
64751-05H00-000 |
from US $17.44 |
||
|
9
|
9
09159-20014-000 NUT |
09159-20014-000 |
from US $42.99 |
||
|
10
|
10
65110-05H00-000 TIRE,RR(150/70 13M/C 64S) |
65110-05H00-000 |
from US $191.36 |
||
|
11
|
11
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
12
|
12
43222-73H20-000 BALANCER,WHEEL NO.1Balancer, wheel no.1 |
43222-73H20-000 |
US $2.72 |
||
|
12
|
12
43224-73H20-000 BALANCER,WHEEL NO.2Balancer, wheel no.2 |
43224-73H20-000 |
US $3.02 |
||
|
12
|
12
43226-73H20-000 BALANCER,WHEEL NO.3Balancer, wheel no.3 |
43226-73H20-000 |
from US $3.53 |
