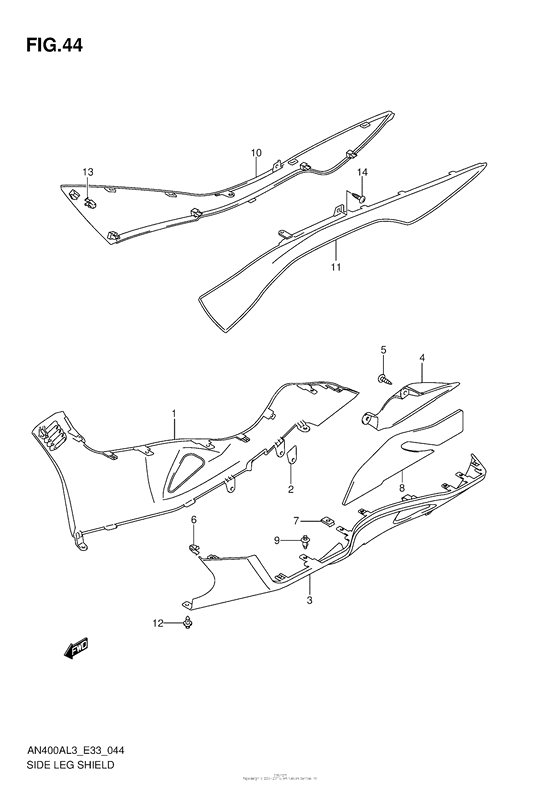

Side Leg Shield (An400Al3 E33) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2013
- Model code
- AN400AL3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48171-05H00-YBD SHIELD,LEG SIDE,R |
48171-05H00-YBD |
US $932.80 |
||
|
1
|
1
48171-05H00-YKV SHIELD,LEG SIDE,R |
48171-05H00-YKV |
from US $355.12 |
||
|
2
|
2
48172-05H00-000 SHIELD,LEG SIDE HEAT,R |
48172-05H00-000 |
from US $4.86 |
||
|
3
|
3
48181-05H01-YBD SHIELD,LEG SIDE,L |
48181-05H01-YBD |
US $932.80 |
||
|
3
|
3
48181-05H01-YKV SHIELD,LEG SIDE,L |
48181-05H01-YKV |
from US $352.61 |
||
|
4
|
4
48185-05H00-000 COVER,LEG SIDE,L |
48185-05H00-000 |
from US $9.09 |
||
|
5
|
5
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.65 |
||
|
6
|
6
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
7
|
7
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
8
|
8
48182-05H01-000 CUSHION,LEG,L |
48182-05H01-000 |
from US $29.62 |
||
|
9
|
9
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
10
|
10
48141-05H00-291 COVER,LEG CTR,R |
48141-05H00-291 |
from US $70.66 |
||
|
11
|
11
48142-05H00-291 COVER,LEG CTR,L |
48142-05H00-291 |
from US $70.66 |
||
|
12
|
12
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
13
|
13
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
