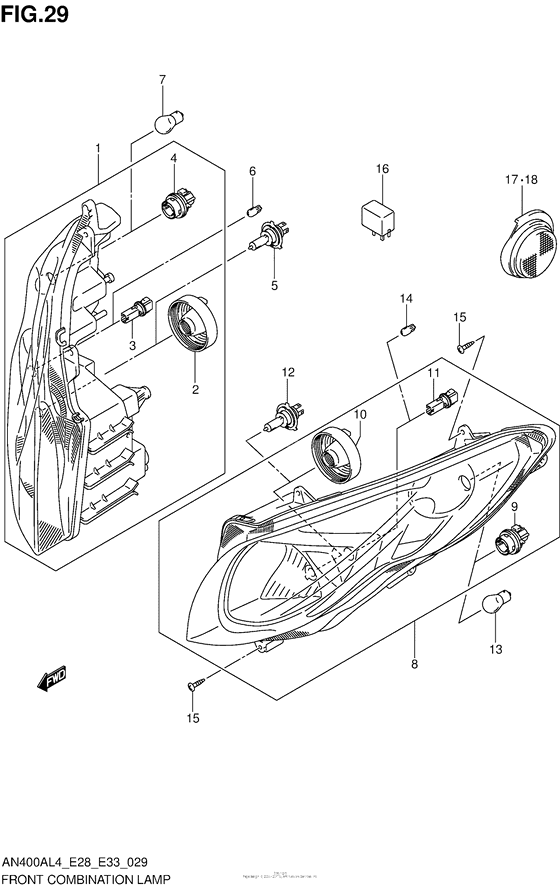

Front Combination Lamp Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2014
- Model code
- AN400AL4
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-05HB0-999 LAMP ASSY,FR COMBINATION,R |
35100-05HB0-999 |
from US $360.64 |
||
|
2
|
2
35179-64G00-000 COVER,SOCKET |
35179-64G00-000 |
from US $9.20 |
||
|
3
|
3
35118-76F00-000 SOCKET,POSITION LAMP |
35118-76F00-000 |
from US $9.28 |
||
|
4
|
4
36118-60G00-000 SOCKET |
36118-60G00-000 |
from US $6.32 |
||
|
5
|
5
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $29.50 |
||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
7
|
7
09471-12152-000 BULB(12V27/8W) |
09471-12152-000 |
from US $7.52 |
||
|
8
|
8
35300-05HB0-999 LAMP ASSY,FR COMBINATION,L |
35300-05HB0-999 |
from US $360.64 |
||
|
9
|
9
36118-60G00-000 SOCKET |
36118-60G00-000 |
from US $6.32 |
||
|
10
|
10
35179-64G00-000 COVER,SOCKET |
35179-64G00-000 |
from US $9.20 |
||
|
11
|
11
35118-76F00-000 SOCKET,POSITION LAMP |
35118-76F00-000 |
from US $9.28 |
||
|
12
|
12
09471-12182-000 BULB(12V60/55W,H4) |
09471-12182-000 |
from US $29.50 |
||
|
13
|
13
09471-12152-000 BULB(12V27/8W) |
09471-12152-000 |
from US $7.52 |
||
|
14
|
14
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
15
|
15
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
16
|
16
38610-05H00-000
RELAY ASSY,TURNSIGNAL
|
38610-05H00-000 |
— | ||
| replacement | |||||
|
16
|
16
38610-05H01-000 Relay Assy,turnsignal Lamp |
38610-05H01-000 |
from US $75.44 |
||
|
17
|
17
35951-05H00-000 REFLEX REFLECTOR,FR SIDE,R |
35951-05H00-000 |
US $48.43 |
||
|
18
|
18
35952-05H00-000 REFLEX REFLECTOR,FR SIDE,L |
35952-05H00-000 |
US $61.01 |
||
