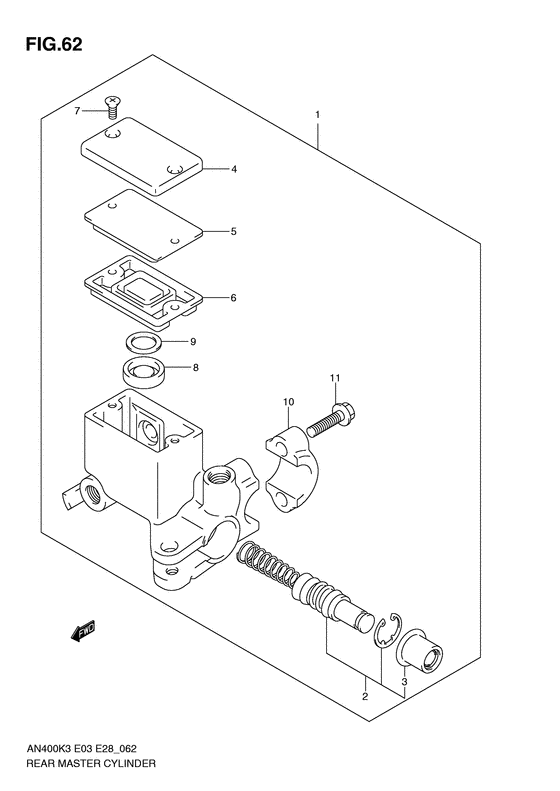

Rear master cylinder Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2003
- Model code
- AN400K3(E3/E28) K3
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69600-14F30-000
Cylinder assy, rear master
|
69600-14F30-000 |
— | ||
| replacement | |||||
|
1
|
1
69600-14F31-000 CYLINDER ASSY,RR MASTER |
69600-14F31-000 |
from US $230 |
||
|
2
|
2
59600-45850-000 PISTON & CUP SETPiston / cup set |
59600-45850-000 |
from US $40.48 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59669-14F10-000 CAP |
59669-14F10-000 |
from US $9.94 |
||
|
5
|
5
59668-14F00-000 PLATE,DIAPHRAGM |
59668-14F00-000 |
from US $5.59 |
||
|
6
|
6
59667-04700-000 DIAPHRAGMDiaphragm |
59667-04700-000 |
from US $7.14 |
||
|
7
|
7
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.51 |
||
|
8
|
8
59748-15400-000 SEPERATOR |
59748-15400-000 |
from US $5.59 |
||
|
9
|
9
59749-15400-000 PLATE |
59749-15400-000 |
from US $1.62 |
||
|
10
|
10
59671-36500-000 HOLDER |
59671-36500-000 |
from US $6.86 |
||
|
11
|
11
59675-02FA0-000 BOLT(6X22) |
59675-02FA0-000 |
US $6.10 |
||
