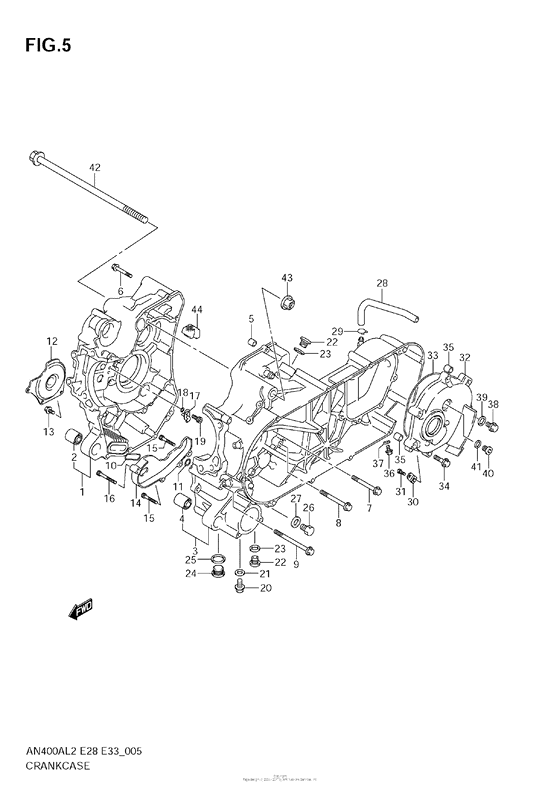

Crankcase Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11310-05812-000 CRANKCASE SET,R |
11310-05812-000 |
from US $230 |
||
|
2
|
2
09319-10043-000 BUSH(10X23X30) |
09319-10043-000 |
from US $19.36 |
||
|
3
|
3
11320-05831-000 Crankcase set,l |
11320-05831-000 |
US $908.61 |
||
| replacement | |||||
|
3
|
3
11320-05833-000 CRANKCASE SET,L |
11320-05833-000 |
from US $517.44 |
||
|
4
|
4
09319-10043-000 BUSH(10X23X30) |
09319-10043-000 |
from US $19.36 |
||
|
5
|
5
11319-33E50-000 PIN,CRANKCASE |
11319-33E50-000 |
from US $2.72 |
||
|
6
|
6
01547-0640A-000 BOLT |
01547-0640A-000 |
from US $0.91 |
||
|
7
|
7
01547-0665A-000 BOLT |
01547-0665A-000 |
from US $0.96 |
||
|
8
|
8
01550-0875A-000 BOLT |
01550-0875A-000 |
from US $1.60 |
||
|
9
|
9
01550-0895A-000 BOLT |
01550-0895A-000 |
from US $1.82 |
||
|
10
|
10
11315-19F00-000 O RING,CRANKCASE |
11315-19F00-000 |
from US $9.12 |
||
|
11
|
11
09280-10016-000 O RING(D:1.9,ID:9.8)O ring |
09280-10016-000 |
from US $1.52 |
||
|
12
|
12
11313-05H00-000 SEPARATOR,OIL |
11313-05H00-000 |
from US $4.64 |
||
|
13
|
13
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
14
|
14
11323-05H00-000 SEPARATOR,OIL |
11323-05H00-000 |
from US $55.57 |
||
|
15
|
15
07130-0630A-000 Bolt |
07130-0630A-000 |
from US $5.07 |
||
|
16
|
16
07130-0645A-000 Bolt |
07130-0645A-000 |
from US $2.94 |
||
|
17
|
17
11390-14F00-000 JET,PISTON COOLING |
11390-14F00-000 |
from US $10.30 |
||
|
18
|
18
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet |
09280-04004-000 |
from US $1.82 |
||
|
19
|
19
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
20
|
20
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
21
|
21
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
22
|
22
09248-14012-000
PLUG(14X12)
|
09248-14012-000 |
— | ||
| replacements | |||||
|
22
|
22
09248-14005-000
PLUG(14X12)
|
09248-14005-000 |
— | ||
|
22
|
22
09248-14011-000 PLUG |
09248-14011-000 |
from US $2.13 |
||
|
23
|
23
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
24
|
24
09248-22004-000 PLUG,22X11Plug, water gallery (22x11) |
09248-22004-000 |
from US $18.85 |
||
|
25
|
25
09168-22002-000 GASKET(22X27X2)Gasket (id:22,od:27) |
09168-22002-000 |
from US $7.85 |
||
|
26
|
26
09247-14036-000 PLUG(14X20)Plug, oil drain (14x12) |
09247-14036-000 |
from US $1.98 |
||
|
27
|
27
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
28
|
28
11329-05H00-000 HOSE,T/M BREATHER |
11329-05H00-000 |
US $7.40 |
||
|
29
|
29
09401-11403-000 CLIPClip |
09401-11403-000 |
from US $1.44 |
||
|
30
|
30
11393-20E00-000 MAGNETO,GEAR BOXMagnet, gear box |
11393-20E00-000 |
US $9.38 |
||
|
31
|
31
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
32
|
32
11431-05H00-000 COVER,GEAR BOX |
11431-05H00-000 |
from US $114.45 |
||
|
33
|
33
09280-00035-000 O RING(D:2.4,ID:172)O ring (d:2.4,id:172) |
09280-00035-000 |
from US $10.46 |
||
|
34
|
34
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
35
|
35
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
36
|
36
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
37
|
37
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
38
|
38
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
39
|
39
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
40
|
40
09248-16012-000 PLUG(16X8)Plug, t.d.c check |
09248-16012-000 |
from US $2.72 |
||
|
41
|
41
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
42
|
42
09103-12054-000 BOLT(12X310) |
09103-12054-000 |
from US $29.46 |
||
|
43
|
43
08319-3112A-000 NUT |
08319-3112A-000 |
from US $1.98 |
||
|
44
|
44
11324-05H00-000 SEPARATOR,OIL BREATHER |
11324-05H00-000 |
from US $11.70 |
||
