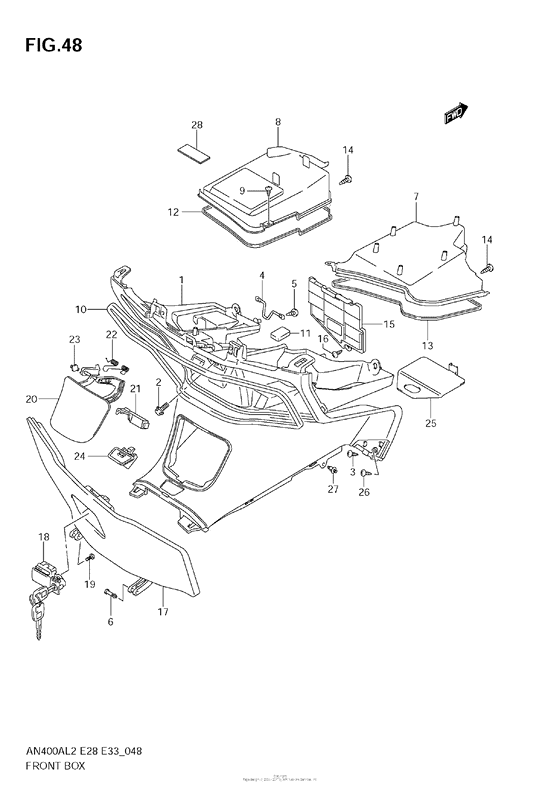

Front Box Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92111-05H11-291 BOX,FR |
92111-05H11-291 |
US $322 |
||
|
2
|
2
09116-06205-000 BOLT(6X16) |
09116-06205-000 |
from US $0.96 |
||
|
3
|
3
09132-05053-000 SCREW(5X16) |
09132-05053-000 |
from US $0.76 |
||
|
4
|
4
92171-05H00-000 STRIKER,FR BOX |
92171-05H00-000 |
US $5.67 |
||
|
5
|
5
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box |
73423-50G00-000 |
from US $2.43 |
||
|
7
|
7
92112-05H02-291 COVER,FRONT BOX INNER,R |
92112-05H02-291 |
from US $67 |
||
|
8
|
8
92113-05H01-291 COVER,FRONT BOX INNER,L |
92113-05H01-291 |
from US $75.51 |
||
|
9
|
9
03541-0512A-000 SCREW |
03541-0512A-000 |
from US $0.65 |
||
|
10
|
10
92114-05H00-000 CUSHION,FR BOX |
92114-05H00-000 |
from US $7.62 |
||
|
11
|
11
92115-05H00-000 CAP,FR BOX |
92115-05H00-000 |
US $4.16 |
||
|
12
|
12
92116-05H00-000 CUSHION,FR BOX INNER |
92116-05H00-000 |
from US $3.31 |
||
|
13
|
13
92116-05H00-000 CUSHION,FR BOX INNER |
92116-05H00-000 |
from US $3.31 |
||
|
14
|
14
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
|
15
|
15
92191-05H01-291 LID,BATTERY BOX |
92191-05H01-291 |
from US $25.39 |
||
|
16
|
16
03541-0616B-000 SCREW |
03541-0616B-000 |
from US $3.77 |
||
|
17
|
17
92120-05H10-291 LID,FR BOX |
92120-05H10-291 |
from US $115.18 |
||
|
18
|
18
92100-10841-000 LOCK SET,LID |
92100-10841-000 |
from US $92.37 |
||
|
19
|
19
02142-0512B-000 SCREW |
02142-0512B-000 |
from US $0.80 |
||
|
20
|
20
92161-05H00-291 LID,FUEL |
92161-05H00-291 |
from US $23.18 |
||
|
21
|
21
92162-14G01-000 LOCK,FUEL LID ARM |
92162-14G01-000 |
from US $6.51 |
||
|
22
|
22
92163-14G01-000 SPRING,FUEL LID |
92163-14G01-000 |
from US $6.15 |
||
|
23
|
23
92164-14G00-000 DAMPER,FUEL LIDDamper, lid |
92164-14G00-000 |
from US $6.92 |
||
|
24
|
24
92180-05H01-291 LOCK ASSY,FUEL LID |
92180-05H01-291 |
from US $11.15 |
||
|
25
|
25
47412-14G01-000 PLATE,ELECTRIC PARTS |
47412-14G01-000 |
from US $9.16 |
||
|
26
|
26
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
27
|
27
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
28
|
28
36920-02200-000 COVER,HARNESSTape, trunk box lamp |
36920-02200-000 |
from US $1.80 |
