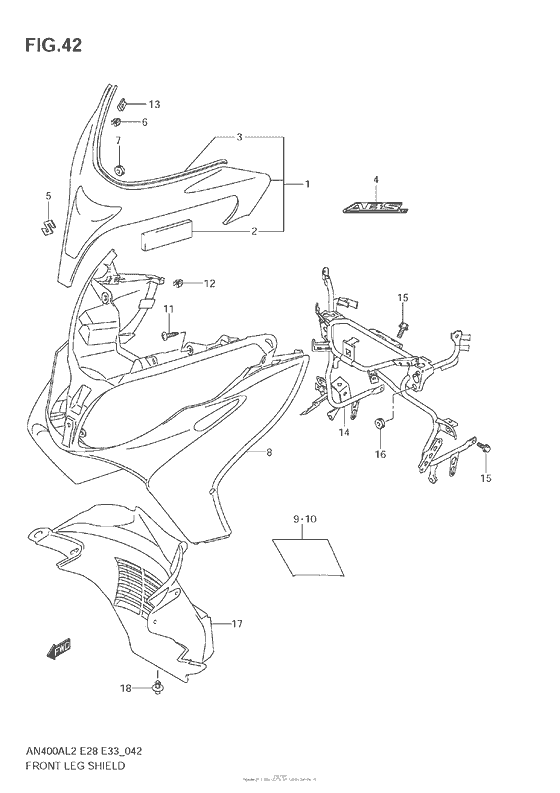

Front Leg Shield (An400A L2 E33) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48130-05H00-YLF COVER,FR LEG SHIELD(GRAY) |
48130-05H00-YLF |
from US $207.92 |
||
|
1
|
1
48130-05H00-YPA COVER,FR LEG SHIELD(WHITE) |
48130-05H00-YPA |
from US $207.92 |
||
|
1
|
1
48130-05H00-YVB COVER,FR LEG SHIELD(BLACK) |
48130-05H00-YVB |
from US $158.40 |
||
|
2
|
2
33652-26E00-000 PROTECTOR(20X90)X1.0Protector (20x90x1) |
33652-26E00-000 |
from US $1.91 |
||
|
3
|
3
48132-05H00-000 MOLDING,FR LEG COVER |
48132-05H00-000 |
US $7.62 |
||
|
4
|
4
68151-44G00-1ZY
EMBLEM,ABS
|
68151-44G00-1ZY |
— | ||
| replacement | |||||
|
4
|
4
68151-44G01-1ZY Emblem,abs(Gray) |
68151-44G01-1ZY |
from US $10.56 |
||
|
5
|
5
68641-14G00-000 EMBLEM,S |
68641-14G00-000 |
from US $14.29 |
||
|
6
|
6
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
7
|
7
09320-06026-000 CUSHION |
09320-06026-000 |
from US $1.82 |
||
|
8
|
8
48111-05H00-YLF SHIELD,LEG FR(GRAY) |
48111-05H00-YLF |
from US $492.80 |
||
|
8
|
8
48111-05H00-YPA SHIELD,LEG FR(WHITE) |
48111-05H00-YPA |
from US $492.80 |
||
|
8
|
8
48111-05H00-YVB SHIELD,LEG FR(BLACK) |
48111-05H00-YVB |
from US $492.80 |
||
|
9
|
9
68161-05H00-YVB TAPE,FR LEG SHIELD,R |
68161-05H00-YVB |
from US $13.32 |
||
|
10
|
10
68162-05H00-YVB TAPE,FR LEG SHIELD,L |
68162-05H00-YVB |
from US $13.32 |
||
|
11
|
11
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
12
|
12
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
13
|
13
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
14
|
14
48150-05HD0-000 BRACE,LEG SHIELD |
48150-05HD0-000 |
from US $364.32 |
||
|
15
|
15
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
16
|
16
09320-08018-000 CUSHIONCushion, lh |
09320-08018-000 |
from US $1.49 |
||
|
17
|
17
48137-05H01-000 SHIELD,LEG LWR |
48137-05H01-000 |
from US $88.69 |
||
|
18
|
18
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
