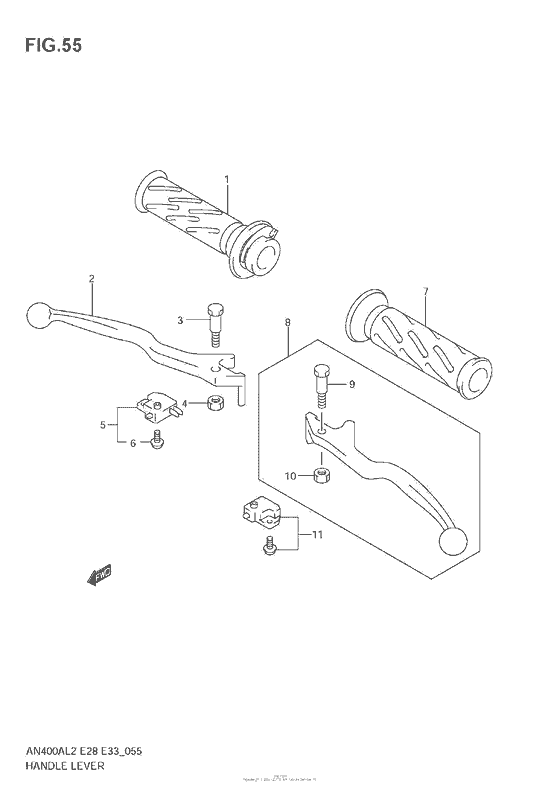

Handle Lever (An400A L2 E33) Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-29G02-291 GRIP,THROTTLE(BLACK) |
57110-29G02-291 |
from US $19.76 |
||
|
2
|
2
57421-14F00-000 LEVER,FR BRAKELever, brake |
57421-14F00-000 |
from US $21.60 |
||
|
3
|
3
57431-04F00-000 BOLT,BRAKE LEVER PIVOT |
57431-04F00-000 |
from US $2.11 |
||
|
4
|
4
57433-09F00-000 NUT,LEVER PIVOT |
57433-09F00-000 |
from US $2.13 |
||
|
5
|
5
57460-14J01-000
SWITCH ASSY,FR BRAKE
|
57460-14J01-000 |
— | ||
| replacement | |||||
|
5
|
5
57460-14J02-000 Switch Assy,stop |
57460-14J02-000 |
US $51.90 |
||
|
6
|
6
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
7
|
7
57211-22D02-291 GRIP,L(BLACK) |
57211-22D02-291 |
from US $11.10 |
||
|
8
|
8
57500-14F00-000 LEVER ASSY,RR BRAKE |
57500-14F00-000 |
from US $19.89 |
||
|
9
|
9
57431-04F00-000 BOLT,BRAKE LEVER PIVOT |
57431-04F00-000 |
from US $2.11 |
||
|
10
|
10
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
11
|
11
57560-14J01-000
SWITCH ASSY,RR BRAKE
|
57560-14J01-000 |
— | ||
| replacement | |||||
|
11
|
11
57560-14J02-000 Switch Assy,rr Brake |
57560-14J02-000 |
US $52.17 |
||
