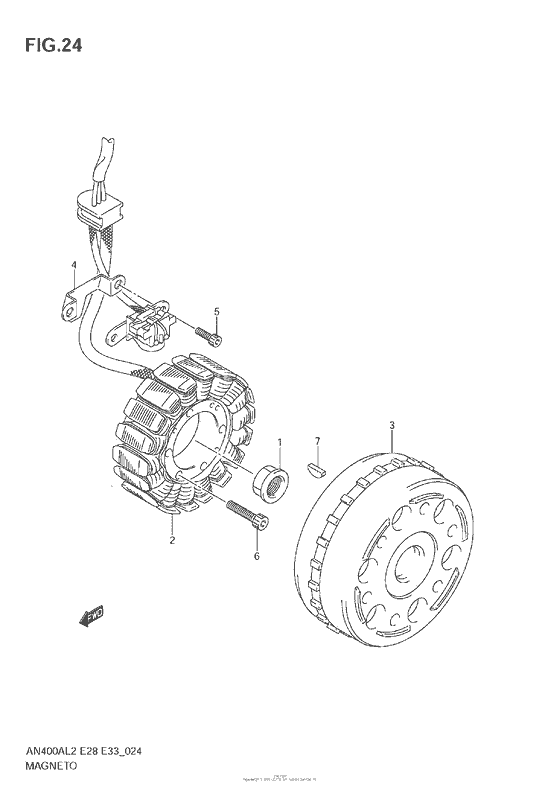

Magneto Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31792-18A00-000 NUT,MAGNETO ROTOR |
31792-18A00-000 |
from US $5.78 |
||
|
2
|
2
32101-15G61-000 STATOR ASSY |
32101-15G61-000 |
from US $418.88 |
||
|
3
|
3
32102-15G30-000 ROTOR ASSY |
32102-15G30-000 |
from US $418.88 |
||
|
4
|
4
32371-32E00-000 CLAMP,MAGNETO LEADClamp, magneto no.2 |
32371-32E00-000 |
from US $2.94 |
||
|
5
|
5
07130-0512A-000 BOLTBolt, pulser/clamp |
07130-0512A-000 |
from US $0.91 |
||
|
6
|
6
07130-0630A-000 Bolt |
07130-0630A-000 |
from US $5.07 |
||
|
7
|
7
09420-04008-000 KEY |
09420-04008-000 |
from US $1.76 |
