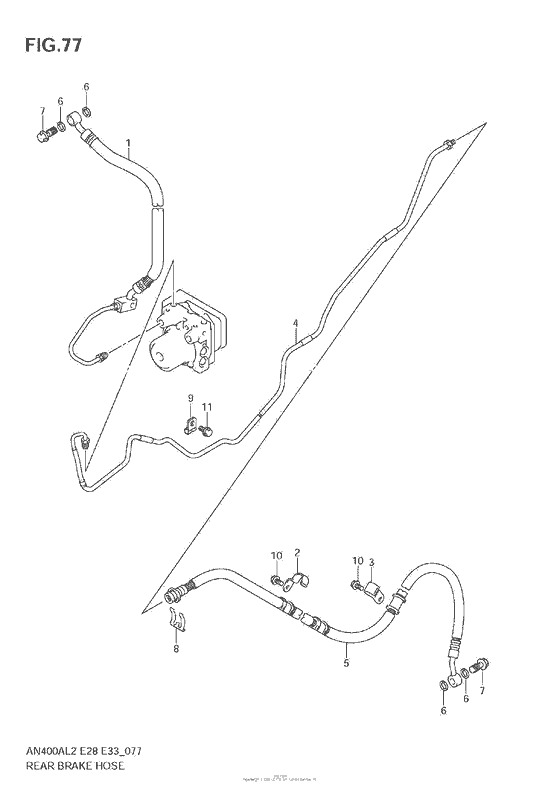

Rear Brake Hose Diagram Suzuki AN400 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN400ZAL2
- Sales region
- USA/ Canada
- Engine Capacity
- 400
- Model
- AN400Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69200-05H00-000
HOSE ASSY,RR BRAKE NO.1
|
69200-05H00-000 |
— | ||
| replacement | |||||
|
1
|
1
69200-05H01-000 Hose |
69200-05H01-000 |
US $70.66 |
||
|
2
|
2
69261-05H00-000 CLAMP,RR BRAKE HOSE NO.1 |
69261-05H00-000 |
from US $7.18 |
||
|
3
|
3
69266-05H00-000 CLAMP,RR BRAKE HOSE NO.2 |
69266-05H00-000 |
US $6.92 |
||
|
4
|
4
69450-05H00-000 PIPE,RR BRAKE |
69450-05H00-000 |
from US $50.78 |
||
|
5
|
5
69480-05H00-000
HOSE,RR BRAKE NO.2
|
69480-05H00-000 |
— | ||
| replacement | |||||
|
5
|
5
69480-05H01-000 Hose |
69480-05H01-000 |
from US $71.76 |
||
|
6
|
6
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
7
|
7
09360-10062-000 UNIONBolt, upper |
09360-10062-000 |
from US $4.64 |
||
|
8
|
8
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
9
|
9
09403-07401-000
CLAMP
|
09403-07401-000 |
— | ||
| replacement | |||||
|
9
|
9
09403-07412-000 Clamp |
09403-07412-000 |
from US $3.35 |
||
|
10
|
10
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
11
|
11
01547-0616A-000 BOLT |
01547-0616A-000 |
from US $0.76 |
||
