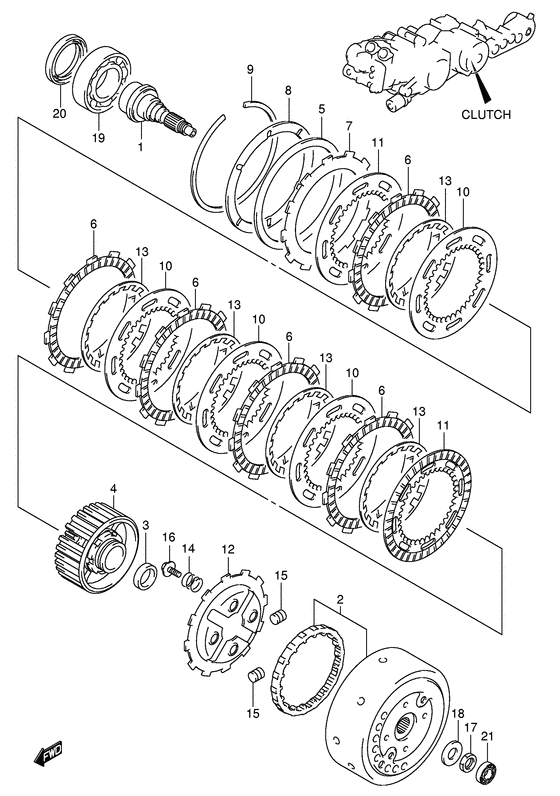

Clutch (Model k3) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21421-10G00-000 SHAFT,CLUTCH(NT:42)Nt:42 |
21421-10G00-000 |
from US $121.44 |
||
|
2
|
2
21221-10811-000
Housing set, clutch
|
21221-10811-000 |
— | ||
| replacements | |||||
|
2
|
2
21221-10830-000 HOUSING SET,CLUTCH |
21221-10830-000 |
from US $211.60 |
||
|
2
|
2
21221-10820-000 HOUSING SET,CLUTCH |
21221-10820-000 |
US $253.92 |
||
|
3
|
3
21222-10G00-000 SPACER,CLUTCH HOUSING |
21222-10G00-000 |
from US $11.22 |
||
|
4
|
4
21321-10810-000
Gear set, hub clutch
|
21321-10810-000 |
— | ||
| replacement | |||||
|
4
|
4
21321-10811-000 GEAR SET,HUB CLUTCH SLEEVE |
21321-10811-000 |
US $320.16 |
||
|
5
|
5
21412-10G00-000 WASHER,CLUTCH SPRING WAVE |
21412-10G00-000 |
from US $17.34 |
||
|
6
|
6
21441-24F20-000 PLATE,CLUTCH DRIVE NO.1 |
21441-24F20-000 |
US $55.44 |
||
|
7
|
7
21443-10G00-000 PLATE,CLUTCH DRIVE OUTER |
21443-10G00-000 |
from US $33 |
||
|
8
|
8
21446-10G00-000 SEAT,CLUTCH SPRING |
21446-10G00-000 |
from US $20.52 |
||
|
9
|
9
21447-10G00-000 CIRCLIP,CLUTCH OUTER PLATE |
21447-10G00-000 |
from US $6.08 |
||
|
10
|
10
21451-10G00-000
Plate, clutch driven
|
21451-10G00-000 |
— | ||
| replacement | |||||
|
10
|
10
21451-10G10-000 PLATE,CLUTCH DRIVEN NO.1 |
21451-10G10-000 |
from US $15.96 |
||
|
11
|
11
21452-10G00-000
Plate, clutch driven
|
21452-10G00-000 |
— | ||
| replacement | |||||
|
11
|
11
21452-10G10-000 PLATE,CLUTCH DRIVEN NO.2 |
21452-10G10-000 |
from US $39.59 |
||
|
12
|
12
21465-10G00-000 PLATE,CLUTCH INNER |
21465-10G00-000 |
from US $8.86 |
||
|
13
|
13
21472-10G00-000 WASHER,CLUTCH PLATE WAVE |
21472-10G00-000 |
from US $13.43 |
||
| replacement | |||||
|
13
|
13
21472-10G10-000 WASHER,CLUTCH PLATE |
21472-10G10-000 |
from US $12.31 |
||
|
14
|
14
21512-10G00-000 SPRING,CLUTCH REACTION |
21512-10G00-000 |
from US $4.05 |
||
|
15
|
15
21650-10G00-000 ROLLER,CLUTCH |
21650-10G00-000 |
from US $8.35 |
||
|
16
|
16
09116-05020-000 BOLT(5X16)Bolt, clutch reaction (5x16) Bolt, clutch reaction (5x16); |
09116-05020-000 |
from US $3.21 |
||
|
17
|
17
09140-18016-000 NUTNut, clutch housing; |
09140-18016-000 |
from US $8.89 |
||
|
18
|
18
09160-18033-000 WASHER(18X30X2.5)Washer (18x30x2.5) Washer, clutch housing; 18x30x2.5 |
09160-18033-000 |
from US $4.76 |
||
|
19
|
19
09262-50003-000 BEARING(50X72X12)Bearing, clutch shaft rh; 50x72x12 |
09262-50003-000 |
from US $61.57 |
||
|
20
|
20
09283-50009-000 SEAL,OIL(50X64X7)Seal, clutch shaft; 50x64x7 |
09283-50009-000 |
from US $14.88 |
||
|
21
|
21
08123-63017-000 BEARINGBearing, clutch shaft lh Bearing, clutch shaft lh; |
08123-63017-000 |
US $19.06 |
||
| replacement | |||||
|
21
|
21
08123-6301B-000 Bearing,rear Hub,lBearing, clutch shaft lh; |
08123-6301B-000 |
from US $10.49 |
||
