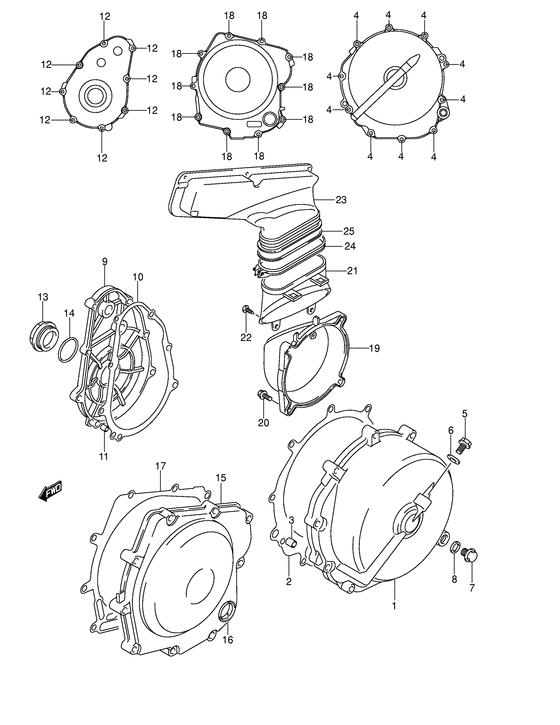

Crankcase cover Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-10G00-000 Cover,clutch |
11341-10G00-000 |
from US $126.96 |
||
|
2
|
2
11482-10G00-000 GASKET,CLUTCH COVER |
11482-10G00-000 |
from US $8.82 |
||
|
3
|
3
04211-09149-000 PINDowel pin Pin, clutch cover; |
04211-09149-000 |
from US $0.91 |
||
|
4
|
4
01547-06303-000
Bolt
Bolt, clutch cover; |
01547-06303-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0630B-000 BOLTBolt Bolt, clutch cover; |
01547-0630B-000 |
from US $0.96 |
||
|
5
|
5
01550-08123-000
Bolt
Plug, oil gallery; |
01550-08123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0812B-000 BoltPlug, drain Plug, oil gallery; |
01550-0812B-000 |
from US $0.96 |
||
|
5
|
5
01550-0812A-000 BOLTPlug, oil gallery; |
01550-0812A-000 |
from US $0.91 |
||
|
6
|
6
09168-08015-000 GASKET(8.2X14X1.6)Gasket, oil gallery plug; Model k3 |
09168-08015-000 |
from US $1.28 |
||
|
6
|
6
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket, oil gallery plug; Model k4/k5 |
09168-08016-000 |
from US $1.22 |
||
|
7
|
7
09247-12006-000 PLUG(12X10)Plug, oil level; |
09247-12006-000 |
from US $1.98 |
||
|
8
|
8
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket, oil level plug; |
09168-12002-000 |
from US $0.76 |
||
|
9
|
9
11381-10G00-000 COVER,STARTER CLUTCH |
11381-10G00-000 |
from US $64.03 |
||
|
10
|
10
11491-10G00-000 GASKET,STARTER CLUTCH COVER(NAGasket, starter cl cover Gasket, starter clutch cover; |
11491-10G00-000 |
from US $5.12 |
||
|
11
|
11
04211-09149-000 PINDowel pin Pin, starter clutch cover; |
04211-09149-000 |
from US $0.91 |
||
|
12
|
12
01547-06253-000
Bolt
Bolt, starter clutch cover; |
01547-06253-000 |
— | ||
| replacement | |||||
|
12
|
12
01547-0625B-000 BOLTBolt, starter clutch cover; |
01547-0625B-000 |
from US $0.91 |
||
|
13
|
13
09259-36021-000 PLUGCap, clutch adjust Plug, crankshaft hole; |
09259-36021-000 |
from US $8.66 |
||
|
14
|
14
09280-33004-000 O RING(D:3.1,ID:32.7)O ring, crankshaft hole plug; |
09280-33004-000 |
from US $1.67 |
||
|
15
|
15
11350-10G00-000 COVER,MAGNETO |
11350-10G00-000 |
US $149.72 |
||
|
16
|
16
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check Lens, oil level; |
11971-33210-000 |
from US $11.97 |
||
|
17
|
17
11483-10G00-000 GASKET,MAGNETO COVER |
11483-10G00-000 |
from US $10.03 |
||
|
18
|
18
01547-06303-000
Bolt
Bolt, magneto cover; |
01547-06303-000 |
— | ||
| replacement | |||||
|
18
|
18
01547-0630B-000 BOLTBolt Bolt, magneto cover; |
01547-0630B-000 |
from US $0.96 |
||
|
19
|
19
11371-10G00-000 DUCT,BELT COOLING NO.1 |
11371-10G00-000 |
from US $19 |
||
|
20
|
20
01547-06253-000
Bolt
Bolt, belt cooling duct; |
01547-06253-000 |
— | ||
| replacement | |||||
|
20
|
20
01547-0625B-000 BOLTBolt, belt cooling duct; |
01547-0625B-000 |
from US $0.91 |
||
|
21
|
21
11372-10G00-000 DUCT,BELT COOLING NO.2 |
11372-10G00-000 |
US $9.27 |
||
|
22
|
22
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
23
|
23
11373-10G00-000 DUCT,BELT COOLING NO.3 |
11373-10G00-000 |
US $32.38 |
||
|
24
|
24
11374-10G00-000 CLAMP,BELT COOLING DUCT |
11374-10G00-000 |
US $8.66 |
||
|
25
|
25
11375-10G00-000 GUIDE,BELT CLG DUCT NO.3 |
11375-10G00-000 |
US $2.91 |
||
