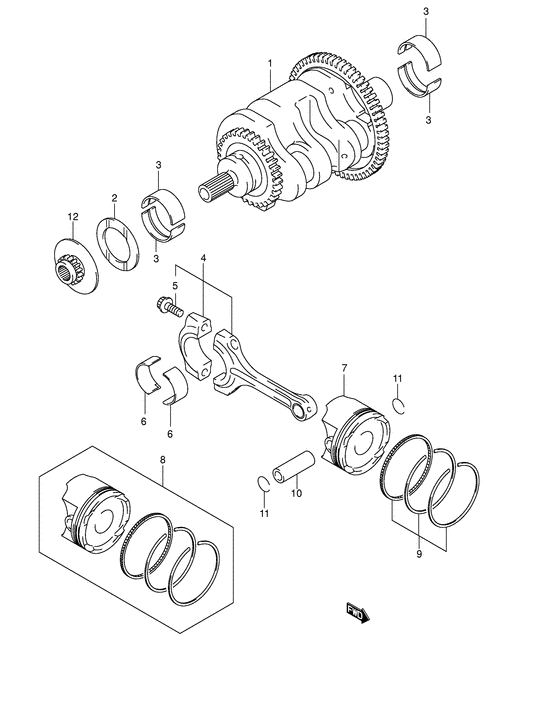

Crankshaft Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-10820-000
CRANKSHAFT SET
Model k3 |
12200-10820-000 |
— | ||
|
1
|
1
12200-10830-000 CRANKSHAFT SETModel k4/k5 |
12200-10830-000 |
from US $834.24 |
||
|
2
|
2
09160-48001-000 WASHER(48.1X64X1.94)Washer, crank thrust (t:1.94); |
09160-48001-000 |
from US $19 |
||
|
2
|
2
09160-48002-000 WASHER(48.1X64X1.96)Washer, crank thrust (t:1.96); |
09160-48002-000 |
US $23 |
||
|
2
|
2
09160-48003-000 WASHER(48.1X64X1.99)Washer, crank thrust (t:1.99); |
09160-48003-000 |
from US $23.31 |
||
|
2
|
2
09160-48004-000 WASHER(48.1X64X2.01)Washer, crank thrust (t:2.01); |
09160-48004-000 |
US $137.30 |
||
|
2
|
2
09160-48005-000 WASHER(48.1X64X2.04)Washer, crank thrust (t:2.04); |
09160-48005-000 |
US $20 |
||
|
2
|
2
09160-48006-000 WASHER(48.1X64X2.06)Washer, crank thrust (t:2.06); |
09160-48006-000 |
from US $20 |
||
|
2
|
2
09160-48007-000 WASHER(48.1X64X2.09)Washer, crank thrust (t:2.09); |
09160-48007-000 |
from US $23.31 |
||
|
2
|
2
09160-48008-000 WASHER(48.1X64X2.11)Washer, crank thrust (t:2.11); |
09160-48008-000 |
from US $23.31 |
||
|
2
|
2
09160-48009-000 WASHER(48.1X64X2.14)Washer, crank thrust (t:2.14); |
09160-48009-000 |
from US $23.31 |
||
|
2
|
2
09160-48010-000 WASHER(48.1X64X2.16)Washer, crank thrust (t:2.16); |
09160-48010-000 |
from US $34.83 |
||
|
3
|
3
12229-10G01-0A0 Bearing,crankshaftBearing, crankshaft (green); |
12229-10G01-0A0 |
from US $10.86 |
||
|
3
|
3
12229-10G01-0B0 Bearing,crankshaftBearing, crankshaft (black); |
12229-10G01-0B0 |
from US $12.16 |
||
|
3
|
3
12229-10G01-0C0 Bearing,crankshaftBearing, crankshaft (brown); |
12229-10G01-0C0 |
from US $12.16 |
||
|
4
|
4
12160-10G00-000
CONNECTING ROD ASSY
|
12160-10G00-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-10G10-000 CONNROD ASSY |
12160-10G10-000 |
from US $121.44 |
||
|
5
|
5
12163-10G00-000 BOLT,CONNECTING ROD |
12163-10G00-000 |
US $10.78 |
||
|
5A
|
5A
12165-27A50-000 PIN,CONNECTING RODPin, connrod Pin, connrod; |
12165-27A50-000 |
from US $1.40 |
||
|
6
|
6
12164-10G00-0A0 Bearing,crank PinBearing, crank pin (green); |
12164-10G00-0A0 |
US $11.78 |
||
|
6
|
6
12164-10G00-0B0 Bearing,crank PinBearing, crank pin (black); |
12164-10G00-0B0 |
US $11.78 |
||
|
6
|
6
12164-10G00-0C0 Bearing,crank PinBearing, crank pin (brown); |
12164-10G00-0C0 |
US $11.78 |
||
|
6
|
6
12164-10G00-0D0 Bearing,crank PinBearing, crank pin (yellow); |
12164-10G00-0D0 |
from US $11.78 |
||
|
7
|
7
12111-10G00-0F0 PISTONModel k3/k4 |
12111-10G00-0F0 |
from US $87.58 |
||
|
7
|
7
12111-10G10-0F0
Piston
Model k5 |
12111-10G10-0F0 |
— | ||
| replacement | |||||
|
7
|
7
12111-10G11-0F0 PISTONModel k5 |
12111-10G11-0F0 |
from US $72.86 |
||
|
8
|
8
12100-10G00-050 PISTON SET(OS:0.5)Piston set (os:0.5); Opt, model k3/k4 |
12100-10G00-050 |
US $163.39 |
||
|
9
|
9
12140-46E13-000 RING SET,PISTONModel k3/k4 |
12140-46E13-000 |
from US $96 |
||
|
9
|
9
12140-10G00-000 RING SET,PISTONModel k5 |
12140-10G00-000 |
from US $86.11 |
||
|
10
|
10
12151-10G00-000 PIN,PISTON |
12151-10G00-000 |
from US $9.68 |
||
|
11
|
11
09381-16001-000 RING,SNAPCirclip Circlip, piston pin; |
09381-16001-000 |
from US $1.06 |
||
|
12
|
12
12731-10G00-000
Sprocket, cam chain drive
Model k3 |
12731-10G00-000 |
— | ||
|
12
|
12
12731-10G10-000 SPROCKET,CAM CHAIN DRIVEModel k4/k5 |
12731-10G10-000 |
from US $55.30 |
||
