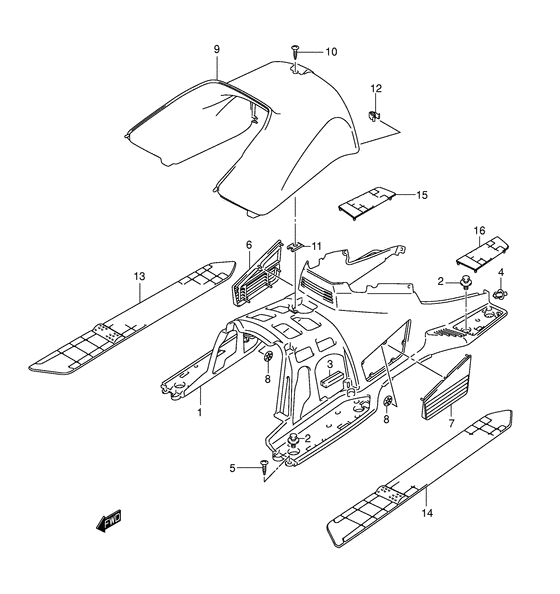

Footboard Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48121-10G00-Y0J FOOTBOARDFootboard (gray); |
48121-10G00-Y0J |
from US $310.40 |
||
|
2
|
2
09116-06107-000 BOLT(6X16) |
09116-06107-000 |
from US $3.47 |
||
|
3
|
3
48127-10G00-000 CUSHION |
48127-10G00-000 |
from US $11.63 |
||
|
4
|
4
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.15 |
||
|
5
|
5
03541-05163-000
Screw
Screw, rear; |
03541-05163-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0516A-000 SCREWScrew, rear; |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
48122-10G00-Y0J LOUVER,AIR,RLouver, air rh (gray); |
48122-10G00-Y0J |
from US $12 |
||
|
7
|
7
48123-10G00-Y0J
Louver, air lh (gray)
Louver, air lh (gray); Model k3 |
48123-10G00-Y0J |
— | ||
| replacement | |||||
|
7
|
7
48123-10G10-Y0J LOUVER,AIR,LLouver, air lh (gray); Model k3 |
48123-10G10-Y0J |
from US $13.47 |
||
|
7
|
7
48123-10G10-Y0J LOUVER,AIR,LLouver, air lh (gray); Model k4/k5 |
48123-10G10-Y0J |
from US $13.47 |
||
|
8
|
8
09148-03010-000 NUT |
09148-03010-000 |
from US $1.28 |
||
|
9
|
9
48191-10G01-Y0J LID,MAINTENANCE(GRAY)Lid, maintenance (gray); |
48191-10G01-Y0J |
from US $74.90 |
||
|
10
|
10
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
12
|
12
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
13
|
13
48211-10G00-Y0J MAT,FLOOR FR,RMat, floor front rh (gray); |
48211-10G00-Y0J |
from US $65.14 |
||
|
14
|
14
48221-10G00-Y0J MAT,FLOOR FR,LMat, floor front lh (gray); |
48221-10G00-Y0J |
US $50.40 |
||
|
15
|
15
48231-10G00-Y0J MAT,FLOOR RR,RMat, floor rear rh (gray); |
48231-10G00-Y0J |
from US $27.97 |
||
|
16
|
16
48241-10G00-Y0J MAT,FLOOR RR,LMat, floor rear lh (gray); |
48241-10G00-Y0J |
from US $27.97 |
||
