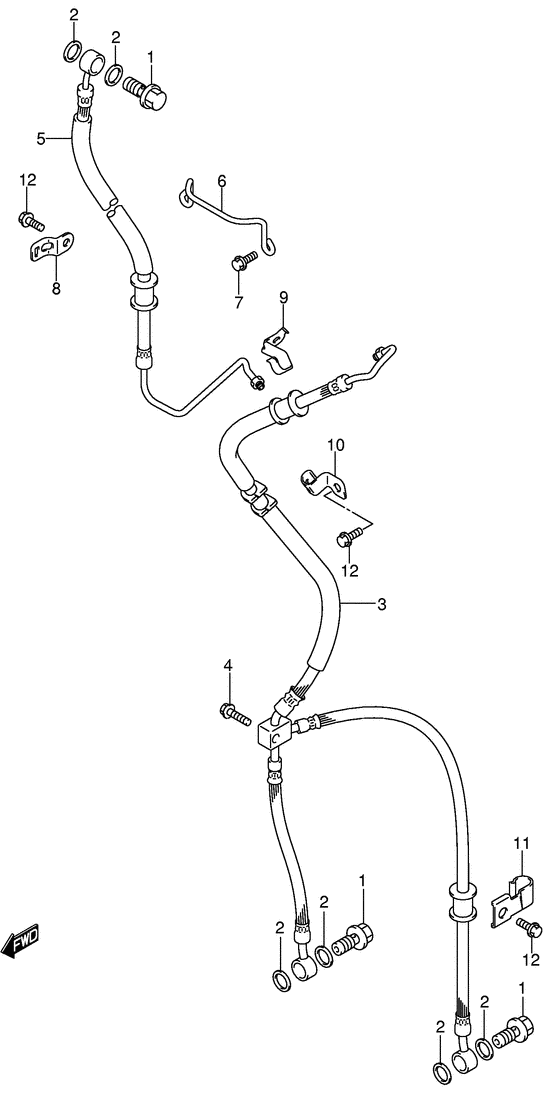

Front brake hose (An650ak4/ak5) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10042-000 Bolt, lower (10x1.25x22)Bolt (10x1.25x22); |
09360-10042-000 |
from US $6.23 |
||
| replacement | |||||
|
1
|
1
09360-10062-000 UNIONBolt, upper Bolt (10x1.25x22); |
09360-10062-000 |
from US $4.64 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59400-10G00-000
Hose, front brake no.2
|
59400-10G00-000 |
— | ||
| replacements | |||||
|
3
|
3
59400-10G01-000
HOSE ASSY,FR BRAKE NO.2
|
59400-10G01-000 |
— | ||
|
3
|
3
59400-10G02-000 Hose |
59400-10G02-000 |
from US $187.68 |
||
|
4
|
4
01547-06253-000
Bolt
Bolt, hose; |
01547-06253-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0625B-000 BOLTBolt, hose; |
01547-0625B-000 |
from US $0.91 |
||
|
5
|
5
59200-10G00-000
Hose, front brake no.1
|
59200-10G00-000 |
— | ||
| replacement | |||||
|
5
|
5
59200-10G01-000 HOSE ASSY,FR BRAKE NO.1 |
59200-10G01-000 |
from US $82.80 |
||
|
6
|
6
59541-10G00-000
GUIDE,BRAKE HOSE
|
59541-10G00-000 |
— | ||
|
7
|
7
01550-06123-000
Bolt
Bolt (6x12); |
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp Bolt (6x12); |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLTBolt (6x12); |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
59262-10G00-000 PLATE,BRAKE HOSE CLAMP |
59262-10G00-000 |
from US $3.64 |
||
|
9
|
9
59263-10G00-000 CLAMP,FR BRAKE HOSE NO.3 |
59263-10G00-000 |
US $5.15 |
||
|
10
|
10
59266-35F10-000 CLAMP,FR BRAKE HOSE NO.2Clamp, front brake hose no.2 |
59266-35F10-000 |
from US $2.91 |
||
|
11
|
11
59268-10G00-000 CLAMP,FR BRAKE HOSE,L |
59268-10G00-000 |
US $5.67 |
||
|
12
|
12
01547-06123-000
Bolt
|
01547-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01547-0612B-000 BOLT |
01547-0612B-000 |
from US $0.77 |
||
|
12
|
12
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
