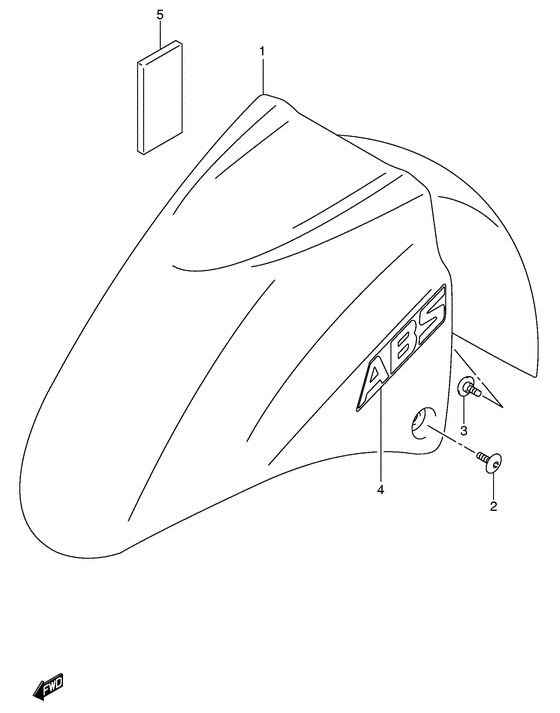

Front fender (Model k3/k4) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-10G00-YD8 FENDER,FRFender, front (silver); |
53111-10G00-YD8 |
from US $254.40 |
||
|
1
|
1
53111-10G00-Y7H FENDER,FRFender, front (blue); An650k3/k4 |
53111-10G00-Y7H |
US $235.78 |
||
|
1
|
1
53111-10G00-YV4
FENDER,FR
Fender, front (green); Model k3 |
53111-10G00-YV4 |
— | ||
| replacement | |||||
|
1
|
1
53111-10G00-000
Front Fender (Non-painted)
Fender, front (green); Model k3 |
53111-10G00-000 |
— | ||
|
1
|
1
53111-10G00-33J
FENDER,FR
Fender, front (black); Model k3 |
53111-10G00-33J |
— | ||
| replacement | |||||
|
1
|
1
53111-10G00-000
Front Fender (Non-painted)
Fender, front (black); Model k3 |
53111-10G00-000 |
— | ||
|
1
|
1
53111-10G00-YAY FENDER,FRFender, front (black); An650k4/ak4 |
53111-10G00-YAY |
from US $218.96 |
||
|
2
|
2
09139-06121-000 SCREW(6X16)Screw Screw; Model k3 |
09139-06121-000 |
from US $2.13 |
||
|
2
|
2
09139-06131-000 SCREW(6X16)Screw; Model k4 |
09139-06131-000 |
from US $1.82 |
||
|
3
|
3
09122-86005-000 SCREW(6X16)Bolt, rear Bolt, rear; |
09122-86005-000 |
from US $1.52 |
||
|
4
|
4
68151-10GA0-APK EMBLEM,FR FENDERAn650ak4 for yd8 |
68151-10GA0-APK |
US $11.59 |
||
|
4
|
4
68151-10GA0-AVU EMBLEM,FR FENDERAn650ak4 for yay |
68151-10GA0-AVU |
US $11.59 |
||
|
5
|
5
53145-10G00-000 CUSHION,FR FENDERModel k4 |
53145-10G00-000 |
from US $1.54 |
||
