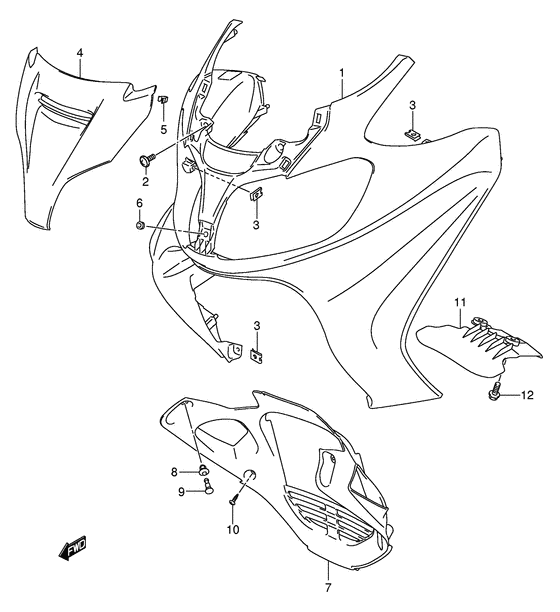

Front leg shield (An650ak5) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48111-10G00-YD8 SHIELD,LEG FRShield, leg front (silver); |
48111-10G00-YD8 |
from US $843.38 |
||
|
1
|
1
48111-10G00-YAY SHIELD,LEG FRShield, leg front (black); |
48111-10G00-YAY |
from US $843.38 |
||
|
1
|
1
48111-10G00-YBA
SHIELD,LEG FR
Shield, leg front (blue); |
48111-10G00-YBA |
— | ||
|
2
|
2
09136-06061-000 SCREW(6X16) |
09136-06061-000 |
from US $3.86 |
||
|
3
|
3
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
4
|
4
48130-10GA0-YD8 COVER,FR LEG SHIELD(SILVER)Cover, front leg (black); |
48130-10GA0-YD8 |
US $70.29 |
||
|
4
|
4
48130-10GA0-YAY COVER,FR LEG SHIELD(BLACK)Cover, front leg (black); |
48130-10GA0-YAY |
US $237.36 |
||
|
4
|
4
48130-10GA0-YBA
COVER,FR LEG SHIELD(BLUE)
Cover, front leg (blue); |
48130-10GA0-YBA |
— | ||
| replacement | |||||
|
4
|
4
48130-10GA0-000 COVER,FR LEG SHIELD(NON PAINT)Cover, front leg (blue); |
48130-10GA0-000 |
US $189.52 |
||
|
5
|
5
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
6
|
6
09320-06016-000
CUSHION
|
09320-06016-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-06027-000 Cushion,fuel Tank Cover Center |
09320-06027-000 |
from US $1.62 |
||
|
7
|
7
48137-10G01-Y0J SHIELD,LEG LWRShield, leg lower (gray); |
48137-10G01-Y0J |
from US $79.49 |
||
|
8
|
8
09409-08329-000 GROMMETClip Grommet; |
09409-08329-000 |
from US $1.06 |
||
|
9
|
9
09409-08330-000 PLUNGERGrommet Plunger; |
09409-08330-000 |
from US $1.12 |
||
|
10
|
10
09132-05053-000 SCREW(5X16) |
09132-05053-000 |
from US $0.76 |
||
|
11
|
11
94458-10G00-000 COVER,LWR BRACKET |
94458-10G00-000 |
from US $11.63 |
||
|
12
|
12
63161-43E00-000
Bolt, upper
|
63161-43E00-000 |
— | ||
| replacement | |||||
|
12
|
12
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
