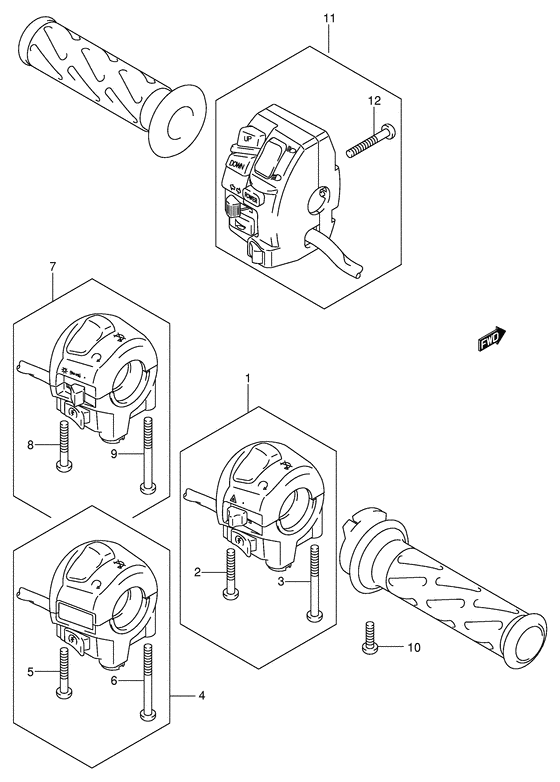

Handle switch (An650k3/lk3) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-10G10-000 SWITCH ASSY,HANDLE,R |
37200-10G10-000 |
from US $121.44 |
||
|
2
|
2
02112-05303-000
Screw
|
02112-05303-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0530A-000 SCREW |
02112-0530A-000 |
from US $0.76 |
||
|
3
|
3
02112-05503-000
Screw
|
02112-05503-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0550B-000 SCREWScrew, bracket |
02112-0550B-000 |
from US $0.76 |
||
|
4
|
4
37200-10G30-000
SWITCH ASSY,HANDLE,R
E24 |
37200-10G30-000 |
— | ||
|
5
|
5
02112-05303-000
Screw
E24 |
02112-05303-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-0530A-000 SCREWE24 |
02112-0530A-000 |
from US $0.76 |
||
|
6
|
6
02112-05503-000
Screw
E24 |
02112-05503-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0550B-000 SCREWScrew, bracket E24 |
02112-0550B-000 |
from US $0.76 |
||
|
7
|
7
37200-10G20-000
SWITCH ASSY,HANDLE,R
An650lk3 e19 |
37200-10G20-000 |
— | ||
|
8
|
8
02112-05303-000
Screw
An650lk3 e19 |
02112-05303-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-0530A-000 SCREWAn650lk3 e19 |
02112-0530A-000 |
from US $0.76 |
||
|
9
|
9
02112-05503-000
Screw
An650lk3 e19 |
02112-05503-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0550B-000 SCREWScrew, bracket An650lk3 e19 |
02112-0550B-000 |
from US $0.76 |
||
|
10
|
10
02112-05103-000
Bolt
Screw, throttle cable; |
02112-05103-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0510A-000 SCREWScrew, throttle cable; |
02112-0510A-000 |
from US $0.76 |
||
|
11
|
11
37400-10G10-000 SWITCH ASSY,HANDLE,L |
37400-10G10-000 |
from US $262.24 |
||
|
12
|
12
02112-05303-000
Screw
|
02112-05303-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0530A-000 SCREW |
02112-0530A-000 |
from US $0.76 |
||
