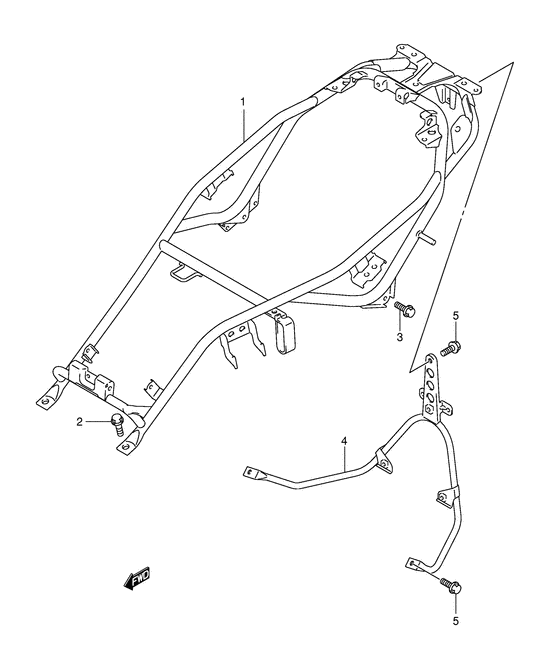

Seat rail Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41200-10G00-000
Rail, seat
Model k3 |
41200-10G00-000 |
— | ||
| replacement | |||||
|
1
|
1
41200-10G01-000
RAIL,SEAT
Model k3 |
41200-10G01-000 |
— | ||
|
1
|
1
41200-10G11-000
Rail, seat
Model k4 |
41200-10G11-000 |
— | ||
| replacement | |||||
|
1
|
1
41200-10G13-000 RAIL,SEATModel k4 |
41200-10G13-000 |
from US $545.60 |
||
|
1
|
1
41200-10G12-000
Rail, seat
Model k5 |
41200-10G12-000 |
— | ||
| replacement | |||||
|
1
|
1
41200-10G13-000 RAIL,SEATModel k5 |
41200-10G13-000 |
from US $545.60 |
||
|
2
|
2
01550-08163-000
Bolt, holder
Bolt, front; |
01550-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0816B-000 BOLTBolt, front; |
01550-0816B-000 |
from US $0.91 |
||
|
2
|
2
01550-0816A-000 BOLTBolt, rear Bolt, front; |
01550-0816A-000 |
from US $0.91 |
||
|
3
|
3
09106-10062-000 BOLT(10X20)Bolt, rear; |
09106-10062-000 |
US $1.82 |
||
|
4
|
4
41580-10G00-000
Brace, rear frame
Model k3 |
41580-10G00-000 |
— | ||
| replacement | |||||
|
4
|
4
41580-10G01-000 BRACKET,RR FRAMEModel k3 |
41580-10G01-000 |
from US $96.42 |
||
|
4
|
4
41580-10G01-000 BRACKET,RR FRAMEModel k4/5 |
41580-10G01-000 |
from US $96.42 |
||
|
5
|
5
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
