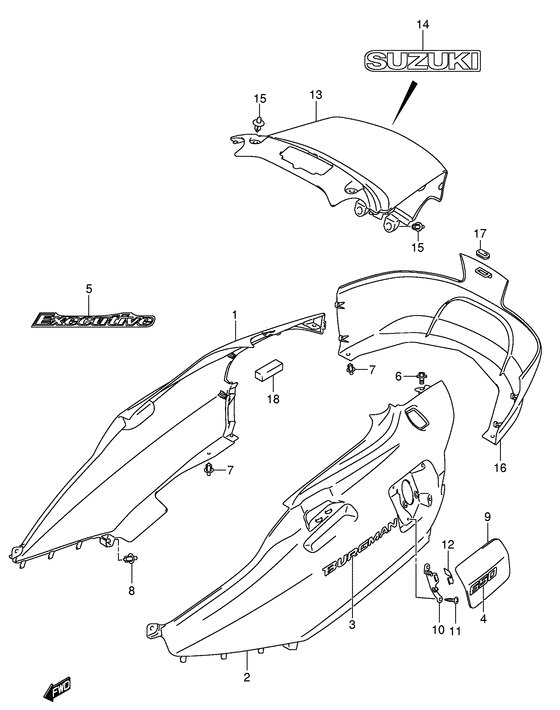

Side cover (An650ak5) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2004
- Model code
- AN650AK4(E2) K4
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47111-10G11-YD8
Cover, side rh (silver)
Cover, side rh (silver); |
47111-10G11-YD8 |
— | ||
| replacement | |||||
|
1
|
1
47111-10G20-YD8 COVER,SIDE,R(SILVER)Cover, side rh (silver); |
47111-10G20-YD8 |
from US $242.88 |
||
|
1
|
1
47111-10G11-YAY
Cover, side rh (black)
Cover, side rh (black); |
47111-10G11-YAY |
— | ||
| replacement | |||||
|
1
|
1
47111-10G20-YAY Cover,side,r(black)Cover, side rh (black); |
47111-10G20-YAY |
from US $323.84 |
||
|
1
|
1
47111-10G11-YBA
Cover, side rh (blue)
Cover, side rh (blue); |
47111-10G11-YBA |
— | ||
| replacements | |||||
|
1
|
1
47111-10G20-YBA
COVER,SIDE,R(BLUE)
Cover, side rh (blue); |
47111-10G20-YBA |
— | ||
|
1
|
1
47111-10G20-000 COVER,SIDE,R(NON PAINT)Cover, side rh (blue); |
47111-10G20-000 |
US $122.91 |
||
|
2
|
2
47211-10G31-YD8
COVER,SIDE,L(SILVER)
Cover, side lh (silver); |
47211-10G31-YD8 |
— | ||
| replacement | |||||
|
2
|
2
47211-10G32-YD8 Cover,side,lCover, side lh (silver); |
47211-10G32-YD8 |
US $268.64 |
||
|
2
|
2
47211-10G31-YAY Cover,side,l(black)Cover, side lh (black); |
47211-10G31-YAY |
from US $268.64 |
||
|
2
|
2
47211-10G31-YBA COVER,SIDE,L(BLUE)Cover, side lh (blue); |
47211-10G31-YBA |
from US $268.64 |
||
|
3
|
3
68131-10G10-000 EMBLEM,COVER SIDE |
68131-10G10-000 |
US $71.08 |
||
|
4
|
4
68131-10GA0-000 EMBLEM,650Emblem, "650"; |
68131-10GA0-000 |
from US $17.60 |
||
|
5
|
5
68165-10GB0-BVW EMBLEM,EXECUTIVEFor yd8 |
68165-10GB0-BVW |
US $9.16 |
||
|
5
|
5
68165-10GB0-BVY EMBLEM,EXECUTIVEFor yay |
68165-10GB0-BVY |
from US $9.16 |
||
|
5
|
5
68165-10GB0-BVZ EMBLEM,EXECUTIVEFor yba |
68165-10GB0-BVZ |
US $9.16 |
||
|
6
|
6
09113-06001-000 BOLT(6X16)Bolt, outer |
09113-06001-000 |
from US $1.22 |
||
|
7
|
7
09409-06314-5PK CLIP(BLACK)Clip (black); |
09409-06314-5PK |
from US $1.46 |
||
|
8
|
8
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.15 |
||
|
9
|
9
47381-10G11-YD8 LID,FUEL(SILVER)Lid, fuel (silver); |
47381-10G11-YD8 |
from US $29.62 |
||
|
9
|
9
47381-10G11-YAY FUEL LID (BLACK)Lid, fuel (black); |
47381-10G11-YAY |
from US $40.80 |
||
|
9
|
9
47381-10G11-YBA FUEL LID (BLUE)Lid, fuel (blue); |
47381-10G11-YBA |
from US $29.62 |
||
|
10
|
10
47382-10G10-000 HINGE,FUEL LID |
47382-10G10-000 |
from US $7.45 |
||
|
11
|
11
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
12
|
12
47388-10G00-000
Spring, lid
Spring, lid; |
47388-10G00-000 |
— | ||
| replacement | |||||
|
12
|
12
47388-10G01-000 SPRING,FUEL LIDSpring, lid; |
47388-10G01-000 |
from US $1.52 |
||
|
13
|
13
47311-10G11-YD8
Cover, frame center (silver)
Cover, frame center (silver); |
47311-10G11-YD8 |
— | ||
| replacement | |||||
|
13
|
13
47311-10G11-000 COVER,FRAME CTR(NON PAINT)Cover, frame center (silver); |
47311-10G11-000 |
from US $21.34 |
||
|
13
|
13
47311-10G11-YAY COVER,FRAME CTRCover, frame center (black); |
47311-10G11-YAY |
from US $59.25 |
||
|
13
|
13
47311-10G11-YBA
Cover, frame center (blue)
Cover, frame center (blue); |
47311-10G11-YBA |
— | ||
| replacement | |||||
|
13
|
13
47311-10G11-000 COVER,FRAME CTR(NON PAINT)Cover, frame center (blue); |
47311-10G11-000 |
from US $21.34 |
||
|
14
|
14
68271-34A00-YJH
EMBLEM,SUZUKI
Emblem, "suzuki"; For yd8 |
68271-34A00-YJH |
— | ||
| replacement | |||||
|
14
|
14
68271-34A01-YJH Emblem,"suzuki"Emblem, "suzuki"; For yd8 |
68271-34A01-YJH |
US $9.59 |
||
|
14
|
14
68271-34A00-YES
EMBLEM,SUZUKI
Emblem, "suzuki"; For yay,yba |
68271-34A00-YES |
— | ||
| replacement | |||||
|
14
|
14
68271-34A01-YES Emblem,"suzuki"Emblem, "suzuki"; For yay,yba |
68271-34A01-YES |
US $10.27 |
||
|
15
|
15
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.15 |
||
|
16
|
16
47321-10G00-YD8 COVER,FRAME LWRCover, frame lower (silver); |
47321-10G00-YD8 |
from US $154.31 |
||
|
16
|
16
47321-10G00-YAY COVER,FRAME LWRCover, frame lower (black); |
47321-10G00-YAY |
from US $135.28 |
||
|
16
|
16
47321-10G00-YBA COVER,FRAME LWRCover, frame lower (blue); |
47321-10G00-YBA |
from US $88.32 |
||
|
17
|
17
09320-04008-000
CUSHION
|
09320-04008-000 |
— | ||
| replacement | |||||
|
17
|
17
09320-04012-000 Cushion |
09320-04012-000 |
from US $1.76 |
||
|
18
|
18
47115-10G00-000 CUSHION,FRAME COVER |
47115-10G00-000 |
from US $1.52 |
||
