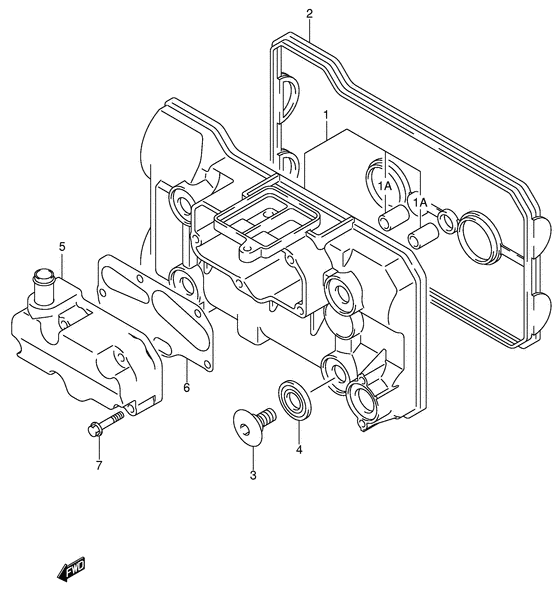

Cylinder head cover Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2005
- Model code
- AN650AK5(E2) K5
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11170-10G00-000 Cover,cylinder head |
11170-10G00-000 |
from US $98.99 |
||
|
1A
|
1A
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
2
|
2
11173-10G00-000 GASKET,CYL HEAD COVERGasket, cyl head cover Gasket, cylinder head cover; |
11173-10G00-000 |
from US $23.74 |
||
|
3
|
3
09106-07009-000 BOLT(7X17.5)Bolt, cyl head cover (l:5.5); |
09106-07009-000 |
from US $2.58 |
||
| replacement | |||||
|
3
|
3
09106-07021-000 BOLT(7X17.5)Bolt, cyl head cover (l:5.5); |
09106-07021-000 |
from US $2.72 |
||
|
4
|
4
09161-11008-000 WASHER(10.6X25.5X2.3)Washer, head cover; |
09161-11008-000 |
from US $2.13 |
||
|
5
|
5
11176-10G00-000 COVER,BREATHER |
11176-10G00-000 |
US $33.86 |
||
|
6
|
6
11177-10G00-000 GASKET,BREATHER COVER |
11177-10G00-000 |
from US $1.91 |
||
|
7
|
7
01547-06303-000
Bolt
Bolt, breather cover; |
01547-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
01547-0630B-000 BOLTBolt Bolt, breather cover; |
01547-0630B-000 |
from US $0.96 |
||
