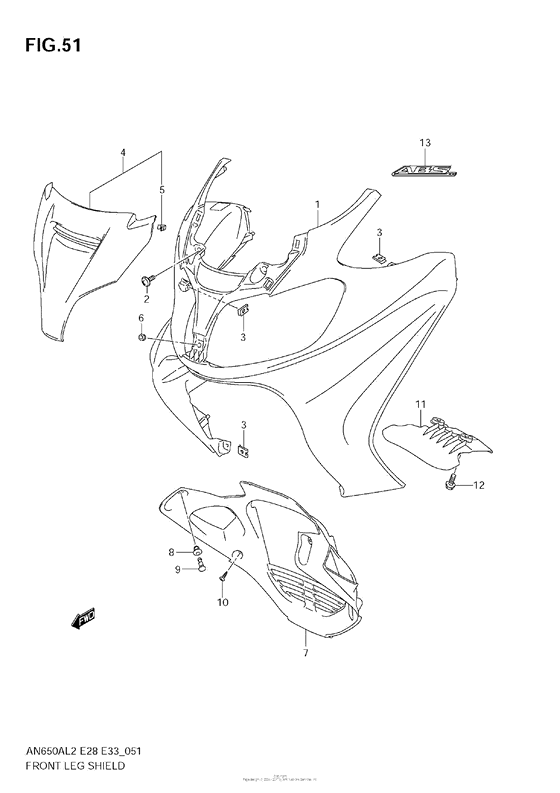

Front Leg Shield Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48111-10G00-YPA SHIELD,LEG FR |
48111-10G00-YPA |
from US $843.38 |
||
|
1
|
1
48111-10G00-YVB SHIELD,LEG FR |
48111-10G00-YVB |
US $1,362.24 |
||
|
1
|
1
48111-10G00-YWC SHIELD,LEG FR |
48111-10G00-YWC |
from US $1,386.32 |
||
|
2
|
2
09136-06004-000 SCREW(6X12) |
09136-06004-000 |
from US $0.77 |
||
|
3
|
3
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
4
|
4
48130-10GA0-YPA COVER,FR LEG SHIELD(WHITE) |
48130-10GA0-YPA |
from US $190.33 |
||
|
4
|
4
48130-10GA0-YVB COVER,FR LEG SHIELD(BLACK) |
48130-10GA0-YVB |
from US $235.52 |
||
|
4
|
4
48130-10GA0-YWC COVER,FR LEG SHIELD(GRAY) |
48130-10GA0-YWC |
from US $106.54 |
||
|
5
|
5
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
6
|
6
09320-06016-000
CUSHION
|
09320-06016-000 |
— | ||
| replacement | |||||
|
6
|
6
09320-06027-000 Cushion,fuel Tank Cover Center |
09320-06027-000 |
from US $1.62 |
||
|
7
|
7
48137-10G01-Y0J SHIELD,LEG LWR |
48137-10G01-Y0J |
from US $79.49 |
||
|
8
|
8
09409-08329-000 GROMMETClip |
09409-08329-000 |
from US $1.06 |
||
|
9
|
9
09409-08330-000 PLUNGERGrommet |
09409-08330-000 |
from US $1.12 |
||
|
10
|
10
09132-05053-000 SCREW(5X16) |
09132-05053-000 |
from US $0.76 |
||
|
11
|
11
94458-10G00-000 COVER,LWR BRACKET |
94458-10G00-000 |
from US $11.63 |
||
|
12
|
12
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
|
13
|
13
68151-44G00-1ZY
EMBLEM,ABS
|
68151-44G00-1ZY |
— | ||
| replacement | |||||
|
13
|
13
68151-44G01-1ZY Emblem,abs(Gray) |
68151-44G01-1ZY |
from US $10.56 |
||
