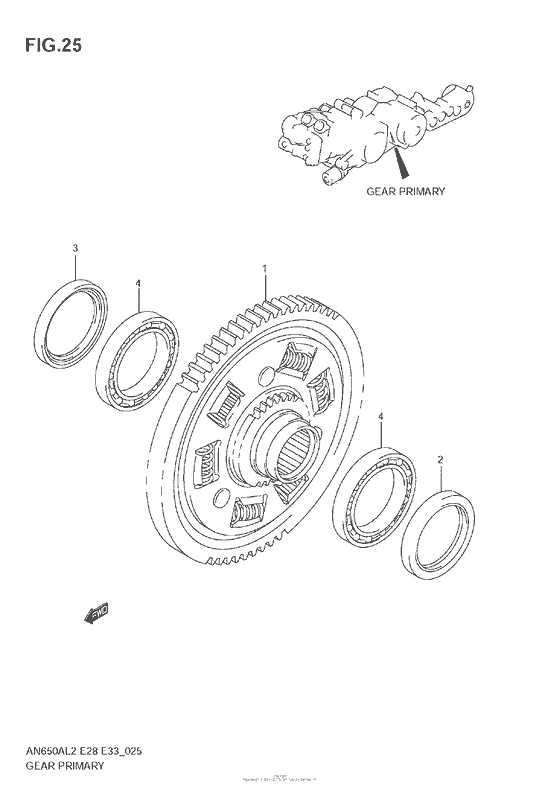

Gear Primary Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-10G20-000 GEAR ASSY,PRI DRIVEN |
21200-10G20-000 |
from US $351.44 |
||
|
2
|
2
09283-44018-000 SEAL,OIL(44X62X7) |
09283-44018-000 |
from US $11.10 |
||
|
3
|
3
09283-44013-000 SEAL,OIL(44X62X7) |
09283-44013-000 |
from US $14.14 |
||
|
4
|
4
09262-45015-000 BEARING(45X68X9.5) |
09262-45015-000 |
from US $61.60 |
