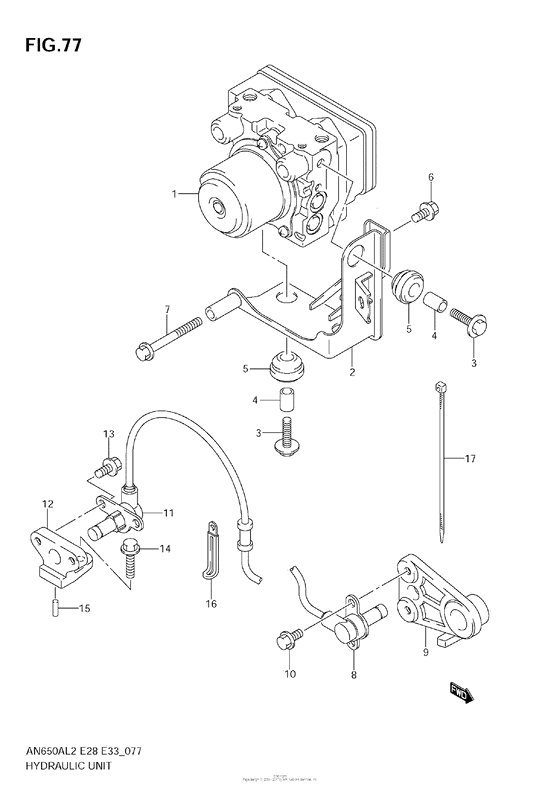

Hydraulic Unit Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55610-10G03-000 UNIT ASSY,HYDRAULIC ABS |
55610-10G03-000 |
from US $2,236 |
||
|
2
|
2
55660-10G00-000
HOLDER,HYDRAULIC UNIT ABS
|
55660-10G00-000 |
— | ||
|
3
|
3
55661-10G00-000 BOLT,HYDR UNIT MTG |
55661-10G00-000 |
from US $3.20 |
||
|
4
|
4
55662-10G00-000 SPACER,HYDR UNIT MTG |
55662-10G00-000 |
from US $3.31 |
||
|
5
|
5
55663-10G00-000 RUBBER,HYDR UNIT MTG |
55663-10G00-000 |
from US $3.75 |
||
|
6
|
6
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
01550-0655A-000 Bolt |
01550-0655A-000 |
US $13.20 |
||
|
8
|
8
55710-10G00-000 SENSOR,FR WHEEL ABS |
55710-10G00-000 |
from US $184 |
||
|
9
|
9
55720-10G00-000 BRACKET,SPEED SENSOR FR |
55720-10G00-000 |
US $58.88 |
||
|
10
|
10
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
11
|
11
65710-10G00-000 SENSOR,RR WHEEL ABS |
65710-10G00-000 |
from US $176.64 |
||
|
12
|
12
65721-10G00-000 BRACKET,SPEED SENSOR RR |
65721-10G00-000 |
US $55.94 |
||
|
13
|
13
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
14
|
14
09103-06240-000 BOLT(6X16) |
09103-06240-000 |
from US $1.04 |
||
|
15
|
15
04221-04089-000 PINPin, bal sprocket driven |
04221-04089-000 |
from US $0.76 |
||
|
16
|
16
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
17
|
17
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
