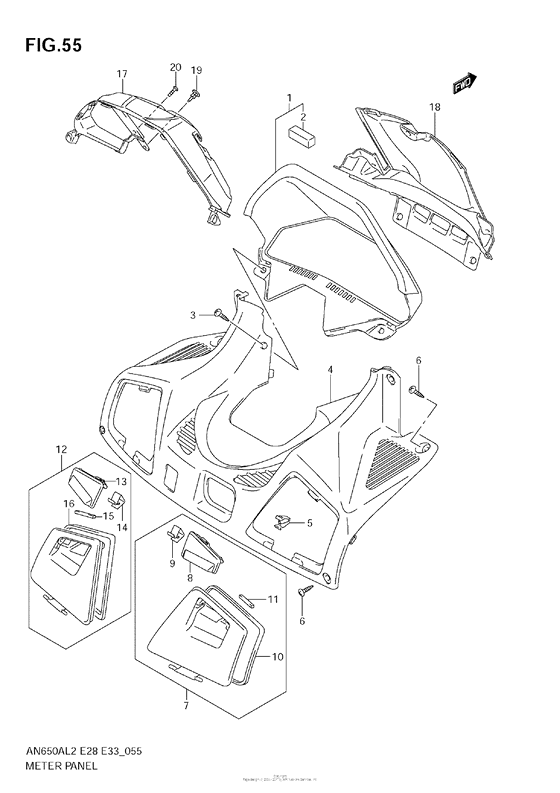

Meter Panel (An650A L2 E28) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94420-10G00-Y0J PANEL,METER RR |
94420-10G00-Y0J |
from US $43.06 |
||
|
2
|
2
94423-10G00-000 CUSHION |
94423-10G00-000 |
from US $4.64 |
||
|
3
|
3
09122-66006-000 SCREW(6X16) |
09122-66006-000 |
from US $4.22 |
||
|
4
|
4
94671-10G20-Y0J PANEL,FR |
94671-10G20-Y0J |
US $58.51 |
||
|
5
|
5
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
6
|
6
09132-05053-000 SCREW(5X16) |
09132-05053-000 |
from US $0.76 |
||
|
7
|
7
92140-10G10-Y0J LID,FR PANEL BOX,R |
92140-10G10-Y0J |
from US $35.20 |
||
|
8
|
8
92143-10G10-Y0J LOCK,FR PANEL BOX,R |
92143-10G10-Y0J |
from US $7.95 |
||
|
9
|
9
92144-10G10-000 SPRING,FR PANEL LID |
92144-10G10-000 |
from US $1.98 |
||
|
10
|
10
92145-10G00-000 CUSHION,FR PANEL LID |
92145-10G00-000 |
from US $1.67 |
||
|
11
|
11
92145-10G00-000 CUSHION,FR PANEL LID |
92145-10G00-000 |
from US $1.67 |
||
|
12
|
12
92150-10G10-Y0J LID,FR PANEL BOX,L |
92150-10G10-Y0J |
from US $33.44 |
||
|
13
|
13
92153-10G10-Y0J LOCK,FR PANEL BOX,L |
92153-10G10-Y0J |
from US $7.45 |
||
|
14
|
14
92144-10G10-000 SPRING,FR PANEL LID |
92144-10G10-000 |
from US $1.98 |
||
|
15
|
15
92145-10G00-000 CUSHION,FR PANEL LID |
92145-10G00-000 |
from US $1.67 |
||
|
16
|
16
92145-10G00-000 CUSHION,FR PANEL LID |
92145-10G00-000 |
from US $1.67 |
||
|
17
|
17
94421-10GA0-Y0J PANEL,METER FR UPR |
94421-10GA0-Y0J |
from US $47.10 |
||
|
18
|
18
94424-10GA0-Y0J PANEL,METER FR LWR |
94424-10GA0-Y0J |
from US $47.10 |
||
|
19
|
19
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
20
|
20
02142-0512B-000 SCREW |
02142-0512B-000 |
from US $0.80 |
