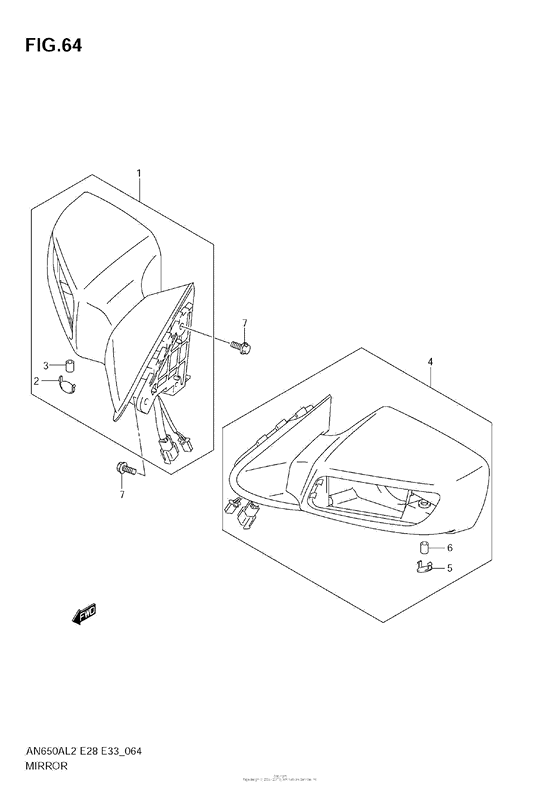

Mirror Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56500-10GD0-YPA
MIRROR ASSY,RR VIEW,R
|
56500-10GD0-YPA |
— | ||
| replacement | |||||
|
1
|
1
56500-10GD1-YPA Mirror Assy,rr View,r |
56500-10GD1-YPA |
from US $362.44 |
||
|
1
|
1
56500-10GD0-YVB
MIRROR ASSY,RR VIEW,R
|
56500-10GD0-YVB |
— | ||
| replacement | |||||
|
1
|
1
56500-10GD1-YVB Mirror Assy,rr View,r |
56500-10GD1-YVB |
US $471.68 |
||
|
1
|
1
56500-10GD0-YWC
MIRROR ASSY,RR VIEW,R
|
56500-10GD0-YWC |
— | ||
| replacement | |||||
|
1
|
1
56500-10GD1-YWC Mirror Assy,rr View,r |
56500-10GD1-YWC |
from US $471.68 |
||
|
2
|
2
56513-10G00-000 CAP,MIRROR |
56513-10G00-000 |
from US $7.47 |
||
|
3
|
3
56514-10G00-000 COLLAR,MIRROR |
56514-10G00-000 |
from US $7.47 |
||
|
4
|
4
56600-10GD0-YPA
MIRROR ASSY,RR VIEW,L
|
56600-10GD0-YPA |
— | ||
| replacement | |||||
|
4
|
4
56600-10GD1-YPA Mirror Assy,rr View,l |
56600-10GD1-YPA |
from US $471.68 |
||
|
4
|
4
56600-10GD0-YVB
MIRROR ASSY,RR VIEW,L
|
56600-10GD0-YVB |
— | ||
| replacement | |||||
|
4
|
4
56600-10GD1-YVB Mirror Assy,rr View,l |
56600-10GD1-YVB |
US $471.68 |
||
|
4
|
4
56600-10GD0-YWC MIRROR ASSY,RR VIEW,L |
56600-10GD0-YWC |
from US $196.88 |
||
|
5
|
5
56513-10G00-000 CAP,MIRROR |
56513-10G00-000 |
from US $7.47 |
||
|
6
|
6
56514-10G00-000 COLLAR,MIRROR |
56514-10G00-000 |
from US $7.47 |
||
|
7
|
7
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
