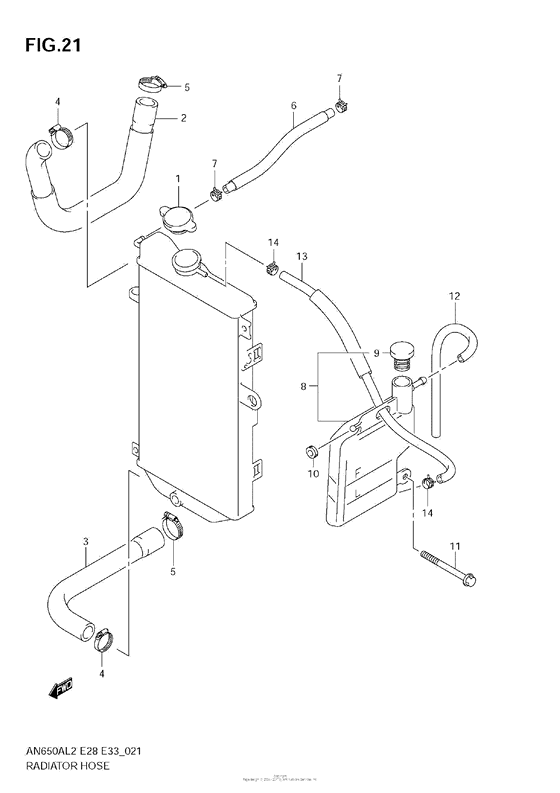

Radiator Hose Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17730-08J00-000 CAP,RADIATOR |
17730-08J00-000 |
from US $14.90 |
||
|
2
|
2
17851-10G00-000 HOSE,RADIATOR INLET |
17851-10G00-000 |
from US $24 |
||
|
3
|
3
17852-10G00-000 HOSE,RADIATOR OUTLET |
17852-10G00-000 |
from US $12.64 |
||
|
4
|
4
09402-32512-000 CLAMP |
09402-32512-000 |
from US $4.11 |
||
|
5
|
5
09402-38512-000 CLAMP |
09402-38512-000 |
from US $4.41 |
||
|
6
|
6
17857-10G00-000 HOSE,WATER AIR VENT |
17857-10G00-000 |
from US $9.12 |
||
|
7
|
7
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
8
|
8
17910-10G00-000 Tank Assy,reservoir |
17910-10G00-000 |
from US $33.30 |
||
|
9
|
9
17931-02FA0-000 CAP,RESERVOIR TANK |
17931-02FA0-000 |
from US $5.93 |
||
|
10
|
10
09320-06504-000 CUSHION |
09320-06504-000 |
from US $1.82 |
||
|
11
|
11
09116-06168-000 BOLT(6X16)Bolt, front |
09116-06168-000 |
from US $0.98 |
||
|
12
|
12
17981-19F00-000 HOSE,RESERVOIR TANK INLETHose, overflow |
17981-19F00-000 |
from US $5.28 |
||
|
13
|
13
17981-10G00-000
HOSE,RESERVOIR TANK INLET
|
17981-10G00-000 |
— | ||
| replacement | |||||
|
13
|
13
17981-10G01-000 Hose,reservoir Tank Inlet |
17981-10G01-000 |
from US $8.32 |
||
|
14
|
14
09401-08411-000 CLIP |
09401-08411-000 |
from US $0.91 |
||
