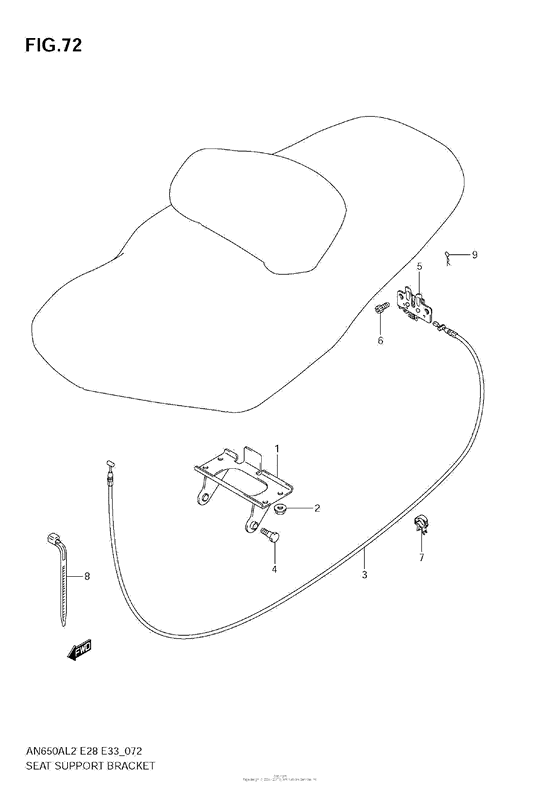

Seat Support Bracket Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45240-10G00-000 BRACKET,SEAT HINGE |
45240-10G00-000 |
from US $32.38 |
||
|
2
|
2
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
45280-10G30-000 CABLE,SEAT LOCK |
45280-10G30-000 |
from US $30.40 |
||
|
4
|
4
09111-06068-000 BOLT(6X18.5)Bolt, front (6x18.5) |
09111-06068-000 |
from US $2.89 |
||
|
5
|
5
45700-14FB2-000 BRACKET,STRIKER SUPPORTBracket, striker support |
45700-14FB2-000 |
from US $37.24 |
||
|
6
|
6
07130-0612B-000 BOLT |
07130-0612B-000 |
from US $0.91 |
||
|
7
|
7
09403-08407-000 CLAMP |
09403-08407-000 |
US $0.91 |
||
|
8
|
8
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
9
|
9
09385-05004-000 PIN,SNAP |
09385-05004-000 |
from US $0.91 |
