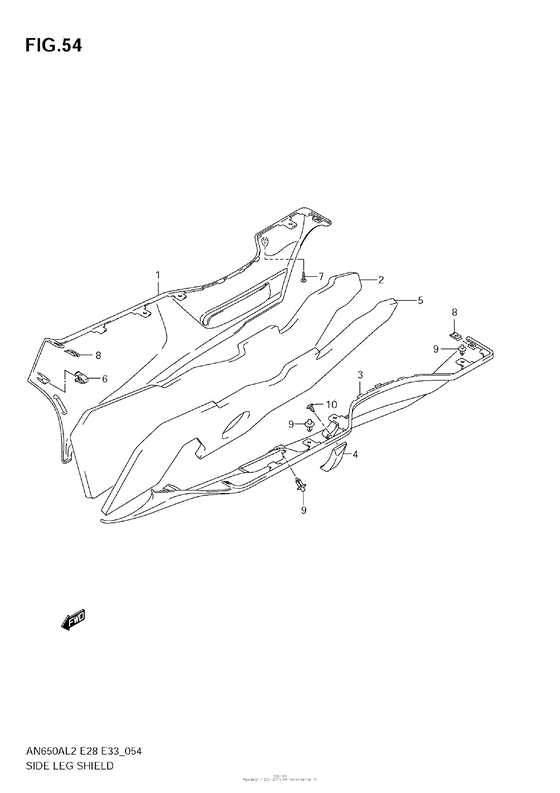

Side Leg Shield Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48171-10G00-YPA SHIELD,LEG SIDE,R |
48171-10G00-YPA |
from US $268.64 |
||
|
1
|
1
48171-10G00-YVB SHIELD,LEG SIDE,R |
48171-10G00-YVB |
US $266.80 |
||
|
1
|
1
48171-10G00-YWC SHIELD,LEG SIDE,R |
48171-10G00-YWC |
from US $270.48 |
||
|
2
|
2
48172-10G00-000 CUSHION |
48172-10G00-000 |
from US $107.82 |
||
|
3
|
3
48181-10G20-YPA
SHIELD,LEG SIDE,L
|
48181-10G20-YPA |
— | ||
|
3
|
3
48181-10G20-YVB SHIELD,LEG SIDE,L |
48181-10G20-YVB |
US $274.16 |
||
|
3
|
3
48181-10G20-YWC SHIELD,LEG SIDE,L |
48181-10G20-YWC |
from US $276 |
||
|
4
|
4
48183-10G00-000 COVER,LEG SHIELD,L |
48183-10G00-000 |
from US $13.76 |
||
|
5
|
5
48182-10G00-000 CUSHION |
48182-10G00-000 |
from US $107.82 |
||
|
6
|
6
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
7
|
7
09132-05053-000 SCREW(5X16) |
09132-05053-000 |
from US $0.76 |
||
|
8
|
8
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
9
|
9
09409-08308-5ES CLIP(BLACK) |
09409-08308-5ES |
from US $1.15 |
||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
