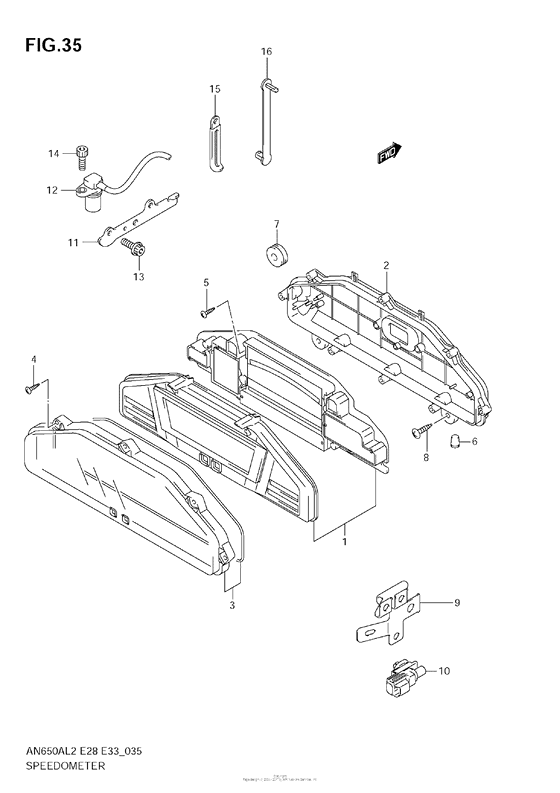

Speedometer (An650A L2 E28) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34120-19HQ0-000
Speedometer
|
34120-19HQ0-000 |
— | ||
|
2
|
2
34111-19HL0-000
LWR CASE
|
34111-19HL0-000 |
— | ||
|
3
|
3
34150-19HP0-000
GLASS ASSY
|
34150-19HP0-000 |
— | ||
|
4
|
4
34383-35F00-000 SCREW(3X16) |
34383-35F00-000 |
from US $1.67 |
||
|
5
|
5
34149-31F10-000 SCREW,PAN HEAD(3X14)Screw (3x14) |
34149-31F10-000 |
from US $2.61 |
||
|
6
|
6
34955-10G00-000 CUSHION,SPEEDOMETERCushion, speedometer |
34955-10G00-000 |
from US $2.50 |
||
|
7
|
7
34955-13E00-000
CUSHION
|
34955-13E00-000 |
— | ||
| replacement | |||||
|
7
|
7
34955-13E01-000 Cushion,speedometer |
34955-13E01-000 |
from US $2.82 |
||
|
8
|
8
03541-0520B-000 SCREWScrew, fender |
03541-0520B-000 |
from US $2.61 |
||
|
9
|
9
34898-13J00-000 BRACKET,SNSR AMBIENT AIR TEMP |
34898-13J00-000 |
from US $6.26 |
||
|
10
|
10
95643-58J00-000 SENSOR,AIR TEMP |
95643-58J00-000 |
from US $21.24 |
||
|
11
|
11
34938-10G00-000 GUIDE,SENSOR LEAD |
34938-10G00-000 |
US $3.64 |
||
|
12
|
12
34990-10G30-000 SENSOR,SPEED |
34990-10G30-000 |
from US $101.20 |
||
| replacement | |||||
|
12
|
12
34990-10G31-000 Sensor,speed |
34990-10G31-000 |
from US $111.76 |
||
|
13
|
13
07120-0612B-000 BOLTPlug |
07120-0612B-000 |
from US $0.96 |
||
|
14
|
14
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
|
15
|
15
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
15
|
15
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
16
|
16
36651-48E00-000 CLAMP(L:63)Clamp, wiring harness |
36651-48E00-000 |
from US $1.92 |
||
