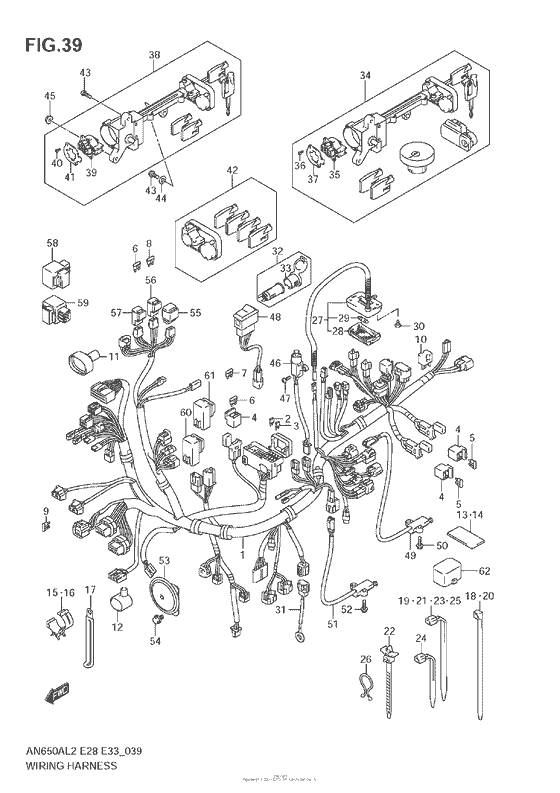

Wiring Harness (An650A L2 E28) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2012
- Model code
- AN650AL2 (2012)
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-13JE0-000
HARNESS,WIRING
|
36610-13JE0-000 |
— | ||
|
2
|
2
09481-10501-000 FUSE(10A) |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A) |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
36742-39D00-000 HOLDER,FUSEBand, fuse |
36742-39D00-000 |
from US $9.90 |
||
|
5
|
5
09481-40101-000 FUSE(40A) |
09481-40101-000 |
from US $5.58 |
||
|
6
|
6
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
7
|
7
09481-03101-000 FUSE(3A)Fuse (3a) |
09481-03101-000 |
US $9.20 |
||
|
8
|
8
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
9
|
9
09481-05101-000 FUSE(5A) |
09481-05101-000 |
from US $2.82 |
||
|
10
|
10
32800-16A00-000 Rectifier AssyRectifier assy |
32800-16A00-000 |
from US $15.97 |
||
|
11
|
11
36618-21E00-000 COVER |
36618-21E00-000 |
US $6.48 |
||
|
12
|
12
36717-19H00-000
BOOT
|
36717-19H00-000 |
— | ||
|
13
|
13
36920-08D00-000 PROTECTOR(30X60X3)Protector (30x60x3) |
36920-08D00-000 |
US $1.44 |
||
|
14
|
14
36920-08D10-000 PROTECTOR(30X30X3)Tape, wiring harness |
36920-08D10-000 |
from US $1.58 |
||
|
15
|
15
09403-25401-000 CLAMP |
09403-25401-000 |
US $19.10 |
||
|
16
|
16
09403-30403-000 CLAMP |
09403-30403-000 |
US $21.30 |
||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
18
|
18
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) |
09407-10404-000 |
from US $3.96 |
||
|
19
|
19
09407-11401-000 CLAMP(L:95)Clamp, stator lead |
09407-11401-000 |
from US $1.76 |
||
|
20
|
20
09407-14407-000 CLAMP(L:145)Band |
09407-14407-000 |
from US $2.08 |
||
|
21
|
21
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
22
|
22
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
23
|
23
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
24
|
24
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
|
25
|
25
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
26
|
26
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
27
|
27
36210-10G00-000 LAMP ASSY,TRUNK BOX |
36210-10G00-000 |
from US $46.74 |
||
|
28
|
28
36212-79001-000 LENS,ROOM LAMPLens, room lamp |
36212-79001-000 |
from US $11.80 |
||
|
29
|
29
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
30
|
30
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
31
|
31
36851-19H01-000 WIRE,OIL PRESSURE LEAD |
36851-19H01-000 |
from US $6.84 |
||
|
32
|
32
39410-76F00-P4Z SOCKET ASSYTerminal, power source |
39410-76F00-P4Z |
from US $23.74 |
||
|
33
|
33
39441-76F00-P4Z COVER |
39441-76F00-P4Z |
from US $6.92 |
||
|
34
|
34
37103-10843-000
LOCK SET
|
37103-10843-000 |
— | ||
| replacements | |||||
|
34
|
34
37103-10844-000
LOCK SET
|
37103-10844-000 |
— | ||
|
34
|
34
37103-10845-000 Lock Set |
37103-10845-000 |
US $432.96 |
||
|
35
|
35
37111-10G00-000 SWITCH,IGNITION |
37111-10G00-000 |
from US $59.20 |
||
|
36
|
36
37121-06H00-000 SCREW,IGNITION SWITCH PLATE |
37121-06H00-000 |
from US $5.37 |
||
|
37
|
37
37181-06H00-000 PLATE,IGNITION SWITCH |
37181-06H00-000 |
from US $9.79 |
||
|
38
|
38
37120-10864-000 LOCK ASSY,STEERING SET |
37120-10864-000 |
US $434.84 |
||
|
39
|
39
37111-10G00-000 SWITCH,IGNITION |
37111-10G00-000 |
from US $59.20 |
||
|
40
|
40
37121-06H00-000 SCREW,IGNITION SWITCH PLATE |
37121-06H00-000 |
from US $5.37 |
||
|
41
|
41
37181-06H00-000 PLATE,IGNITION SWITCH |
37181-06H00-000 |
from US $9.79 |
||
|
42
|
42
37155-10G01-000 SHUTTER,STEERING LOCK |
37155-10G01-000 |
from US $139.84 |
||
|
43
|
43
09139-06048-000 SCREW(6X20)Bolt |
09139-06048-000 |
from US $2.94 |
||
|
44
|
44
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
45
|
45
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
46
|
46
37980-14F00-000 SWITCH ASSY,TRUNK BOX LAMPSwitch assy, trank box lamp |
37980-14F00-000 |
from US $46.74 |
||
|
47
|
47
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
48
|
48
37320-19H00-000 SWITCH ASSY,SEAT HEATER |
37320-19H00-000 |
from US $81.70 |
||
|
49
|
49
37840-10G00-000
SWITCH ASSY,CTR STAND
|
37840-10G00-000 |
— | ||
| replacement | |||||
|
49
|
49
37840-10G01-000 Switch Assy,Side Stand |
37840-10G01-000 |
US $75.68 |
||
|
50
|
50
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
51
|
51
37840-20E00-000
Switch Assy,Side Stand
|
37840-20E00-000 |
— | ||
| replacement | |||||
|
51
|
51
37840-20E01-000 Switch Assy,Side Stand |
37840-20E01-000 |
from US $80.33 |
||
|
52
|
52
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
53
|
53
38500-10G00-000 HORN ASSY |
38500-10G00-000 |
from US $46.37 |
||
|
54
|
54
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
55
|
55
38740-38B00-000 RELAY ASSYRelay assy, fan motor |
38740-38B00-000 |
from US $32.94 |
||
|
56
|
56
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
56
|
56
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
from US $22.88 |
||
|
57
|
57
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
57
|
57
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
from US $22.88 |
||
|
58
|
58
38750-03G00-000 RELAY ASSY,DRIVE |
38750-03G00-000 |
from US $71.40 |
||
|
59
|
59
38750-10G00-000 RELAY ASSY,SCREEN |
38750-10G00-000 |
US $80.96 |
||
|
60
|
60
38740-04J00-000 RELAY ASSY,HEADLAMP |
38740-04J00-000 |
from US $21.53 |
||
|
61
|
61
38740-26E00-000
RELAY ASSY
|
38740-26E00-000 |
— | ||
| replacement | |||||
|
61
|
61
38740-26E01-000 Relay Assy,fuel Pump |
38740-26E01-000 |
from US $22.88 |
||
|
62
|
62
36654-06J00-000
CAP,TS
|
36654-06J00-000 |
— | ||
| replacement | |||||
|
62
|
62
36654-06J01-000 Cap,ts |
36654-06J01-000 |
from US $7.29 |
||
