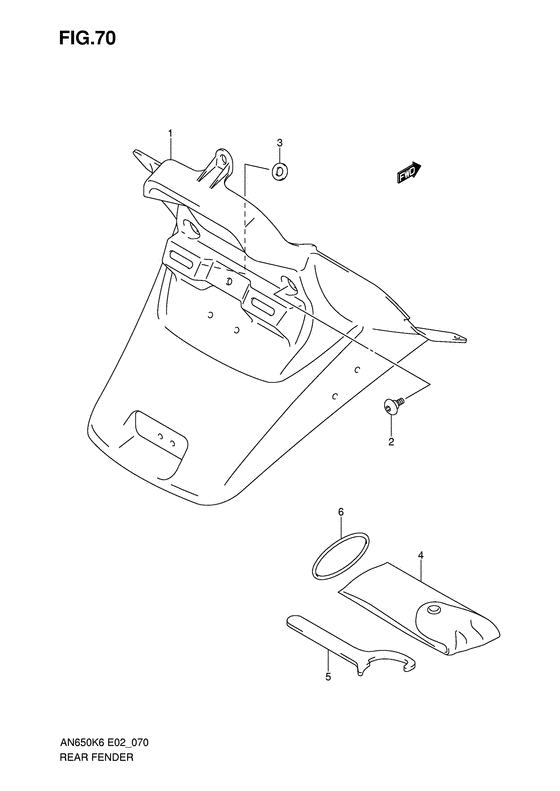

Rear fender Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2008
- Model code
- AN650AZK8(E2) K8
- Engine Capacity
- 650
- Model
- AN650Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-10G00-Y0J FENDER,RRFender, rear (gray); |
63111-10G00-Y0J |
US $68.08 |
||
|
2
|
2
09139-06129-000 SCREW(6X16)Bolt (6x16); |
09139-06129-000 |
from US $5.07 |
||
|
3
|
3
08322-0106B-000 WASHERWasher, license; |
08322-0106B-000 |
from US $0.76 |
||
|
4
|
4
09800-21047-000
TOOL ASSY
|
09800-21047-000 |
— | ||
| replacement | |||||
|
4
|
4
09800-21095-000 Tool Assy |
09800-21095-000 |
from US $45.63 |
||
|
5
|
5
09822-00003-000 CLAMPClamp, wrench; |
09822-00003-000 |
from US $5.59 |
||
|
6
|
6
09280-70004-000 O RING(D:3.53,ID:69.44)Band, tool; |
09280-70004-000 |
from US $2.08 |
||
