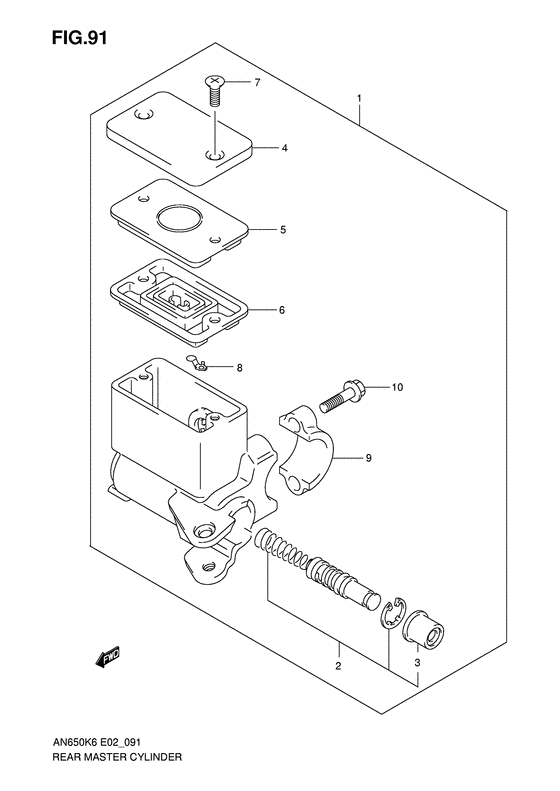

Rear master cylinder Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2008
- Model code
- AN650AZK8(E2) K8
- Engine Capacity
- 650
- Model
- AN650Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69600-10G00-000 CYLINDER ASSY,RR MASTER |
69600-10G00-000 |
from US $230 |
||
|
2
|
2
59600-04810-000 PISTON/CUP SETPiston/cup set; |
59600-04810-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59669-10G00-000 CAP |
59669-10G00-000 |
from US $17.25 |
||
|
5
|
5
59668-41C00-000 PLATE,DIAPHRAGMPlate, diaphragm Plate, diaphragm; |
59668-41C00-000 |
from US $5.28 |
||
|
6
|
6
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
7
|
7
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.51 |
||
|
8
|
8
59664-32F00-000 PROTECTOR |
59664-32F00-000 |
from US $5.67 |
||
|
9
|
9
59671-36500-000 HOLDER |
59671-36500-000 |
from US $6.86 |
||
|
10
|
10
59675-02FA0-000 BOLT(6X22) |
59675-02FA0-000 |
US $6.10 |
