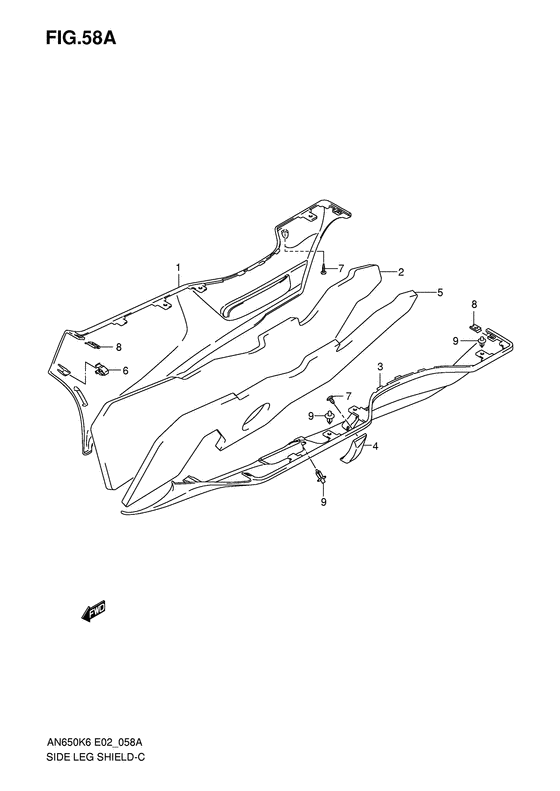

Side leg shield (Model k7) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2008
- Model code
- AN650AZK8(E2) K8
- Engine Capacity
- 650
- Model
- AN650Z
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48171-10G00-YC3
SHIELD,LEG SIDE,R
Shield, leg side rh (white); An650 |
48171-10G00-YC3 |
— | ||
|
1
|
1
48171-10G00-YHG SHIELD,LEG SIDE,RShield, leg side rh (gray); An650a |
48171-10G00-YHG |
from US $193.04 |
||
|
1
|
1
48171-10G00-YHF SHIELD,LEG SIDE,RShield, leg side rh (gray); |
48171-10G00-YHF |
from US $193.04 |
||
|
1
|
1
48171-10G00-YHL
SHIELD,LEG SIDE,R
Shield, leg side rh (red); An650a |
48171-10G00-YHL |
— | ||
|
2
|
2
48172-10G00-000 CUSHION |
48172-10G00-000 |
from US $107.82 |
||
|
3
|
3
48181-10G20-YC3 SHIELD,LEG SIDE,LShield, leg side lh (white); An650 |
48181-10G20-YC3 |
from US $270.48 |
||
|
3
|
3
48181-10G20-YHG SHIELD,LEG SIDE,LShield, leg side lh (gray); An650a |
48181-10G20-YHG |
from US $274.16 |
||
|
3
|
3
48181-10G20-YHF SHIELD,LEG SIDE,LShield, leg side lh (gray); |
48181-10G20-YHF |
from US $263.12 |
||
|
3
|
3
48181-10G20-YHL SHIELD,LEG SIDE,LShield, leg side lh (red); An650a |
48181-10G20-YHL |
from US $294.40 |
||
|
4
|
4
48183-10G00-000 COVER,LEG SHIELD,L |
48183-10G00-000 |
from US $13.76 |
||
|
5
|
5
48182-10G00-000 CUSHION |
48182-10G00-000 |
from US $107.82 |
||
|
6
|
6
09409-08326-000 CLIP |
09409-08326-000 |
from US $0.76 |
||
|
7
|
7
09132-05053-000 SCREW(5X16)Screw (5x16); |
09132-05053-000 |
from US $0.76 |
||
|
8
|
8
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
9
|
9
09409-08308-5ES CLIP(BLACK)Clip (black); |
09409-08308-5ES |
from US $1.15 |
