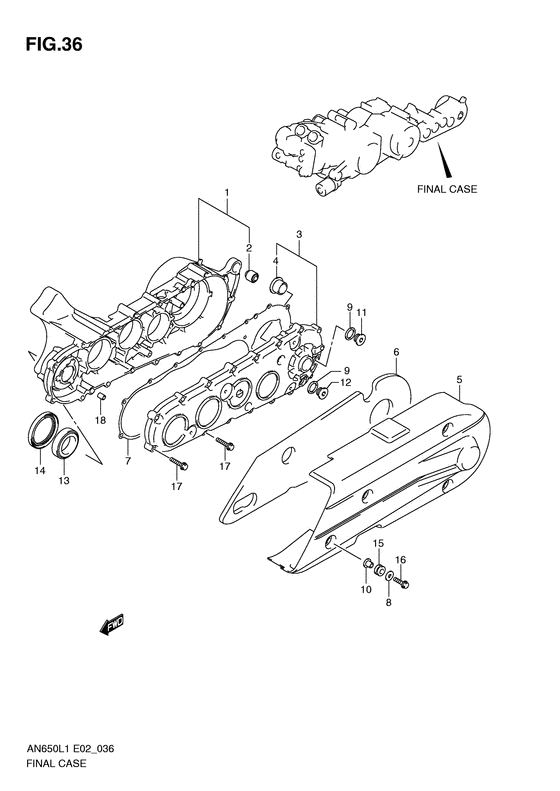

Case final (An650al1 e51) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27450-10G10-000 CASE,FINAL GEAR,R |
27450-10G10-000 |
from US $375.36 |
||
|
2
|
2
09319-10032-000 BUSH(10.2X22.3X20)Bush; |
09319-10032-000 |
from US $5.46 |
||
|
3
|
3
27460-10G00-000 CASE,FINAL GEAR,L |
27460-10G00-000 |
US $252.08 |
||
|
4
|
4
27433-24A00-000 BUSH,FINAL GEAR CASE |
27433-24A00-000 |
from US $13.03 |
||
|
5
|
5
27471-10G00-000 COVER,FINAL GEAR CASE |
27471-10G00-000 |
from US $79.49 |
||
|
6
|
6
27472-10G01-000 CUSHION,FINAL GEAR CASE |
27472-10G01-000 |
from US $25.21 |
||
|
7
|
7
27551-10G00-000 GASKET,FINAL GEAR CASE |
27551-10G00-000 |
from US $14.59 |
||
|
8
|
8
09160-06109-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06109-000 |
from US $0.80 |
||
|
9
|
9
09168-18003-000 GASKET(18X24.2X2)Gasket, oil filler plug Gasket (18x24.2x2); |
09168-18003-000 |
from US $0.90 |
||
|
10
|
10
09169-06062-000 WASHERWasher Washer; |
09169-06062-000 |
from US $1.12 |
||
|
11
|
11
09248-18004-000 PLUG,18X11Plug, oil filler |
09248-18004-000 |
from US $9.44 |
||
|
12
|
12
09248-18008-000 PLUG,18X11 |
09248-18008-000 |
from US $22 |
||
|
13
|
13
09265-35012-000 BEARING(35X55X14)Bearing (35x55x14); Rh |
09265-35012-000 |
from US $52.26 |
||
|
14
|
14
09283-53001-000 SEAL,OIL(53X68.2X7)Oil seal (53x68.2x7); Rh |
09283-53001-000 |
from US $9.20 |
||
|
15
|
15
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.04 |
||
|
16
|
16
01547-0625B-000 BOLT |
01547-0625B-000 |
from US $0.91 |
||
|
17
|
17
01547-0630B-000 BOLTBolt |
01547-0630B-000 |
from US $0.96 |
||
|
18
|
18
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
