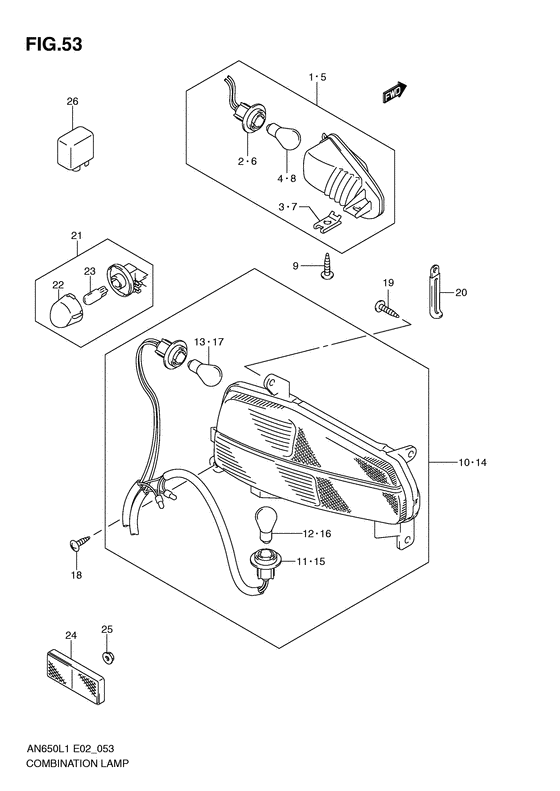

Combination lamp (An650al1 e19) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-10G50-000 LAMP ASSY,FR TURN SIGNAL,R |
35601-10G50-000 |
from US $86.75 |
||
|
2
|
2
35618-10G50-000 SOCKET,RSocket, rh Socket, rh; |
35618-10G50-000 |
from US $14.24 |
||
|
3
|
3
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v21w); |
09471-12186-000 |
from US $5.65 |
||
|
5
|
5
35602-10G50-000 LAMP ASSY,FR TURN SIGNAL,L |
35602-10G50-000 |
US $87.18 |
||
|
6
|
6
35638-10G50-000 SOCKET,LSocket, lh Socket, lh; |
35638-10G50-000 |
from US $14.24 |
||
|
7
|
7
09148-05020-000 NUT |
09148-05020-000 |
from US $0.91 |
||
|
8
|
8
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v21w); |
09471-12186-000 |
from US $5.65 |
||
|
9
|
9
03541-0525B-000 SCREW |
03541-0525B-000 |
from US $3.67 |
||
|
10
|
10
35603-10G40-000 LAMP ASSY,RR COMBINATION,R |
35603-10G40-000 |
from US $276.32 |
||
|
11
|
11
35658-10G40-000 CORD ASSY,R |
35658-10G40-000 |
US $40.85 |
||
|
12
|
12
09471-12083-000 BULB(12V21/5W)Bulb (12v,21/5w); For tail/stop |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
12
|
12
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v,21/5w); For tail/stop |
09471-12128-000 |
from US $7.20 |
||
|
13
|
13
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v,21w); For turn |
09471-12186-000 |
from US $5.65 |
||
|
14
|
14
35604-10G40-000 LAMP ASSY,RR COMBINATION,L |
35604-10G40-000 |
from US $182.40 |
||
|
15
|
15
35678-10G40-000 CORD ASSY,L |
35678-10G40-000 |
from US $35.33 |
||
|
16
|
16
09471-12083-000 BULB(12V21/5W)Bulb (12v,21/5w); For tail/stop |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
16
|
16
09471-12128-000 BULB(12V21/5W,BF141-49642A)Bulb (12v,21/5w); For tail/stop |
09471-12128-000 |
from US $7.20 |
||
|
17
|
17
09471-12186-000 BULB(12V21W,AMBER)Bulb (12v,21w); For turn |
09471-12186-000 |
from US $5.65 |
||
|
18
|
18
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
19
|
19
03541-0516B-000 SCREWScrew; |
03541-0516B-000 |
from US $0.76 |
||
|
20
|
20
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
21
|
21
35910-14F01-000 Lamp assy,license |
35910-14F01-000 |
from US $13.91 |
||
|
22
|
22
35912-14F11-000 LENS |
35912-14F11-000 |
from US $10.56 |
||
|
23
|
23
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v,5w); |
09471-12216-000 |
from US $2.84 |
||
|
24
|
24
35970-07F01-000 REFLECTOR ASSY,RRReflector assy, rear side; |
35970-07F01-000 |
from US $10.42 |
||
|
25
|
25
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
|
26
|
26
38610-03F00-000
RELAY ASSY,TURNSIGNAL LAMP
Relay assy, turnsignal lamp; |
38610-03F00-000 |
— | ||
| replacement | |||||
|
26
|
26
38610-03F01-000 Relay Assy,turnsignal LampRelay assy, turnsignal lamp; |
38610-03F01-000 |
from US $44 |
||
