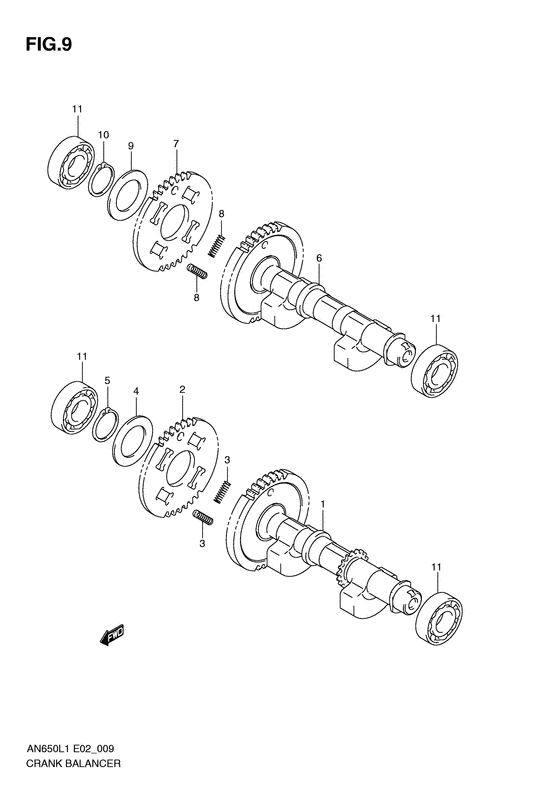

Crank balancer Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12650-10820-000 BALANCER SET,CRANK NO.1 |
12650-10820-000 |
from US $181.79 |
||
|
2
|
2
12667-10G00-000 GEAR,CRANK BAL DRIVEN NO.2 |
12667-10G00-000 |
US $91.63 |
||
|
3
|
3
09440-07076-000 SPRING |
09440-07076-000 |
from US $5.49 |
||
|
4
|
4
08211-32522-000 WASHER |
08211-32522-000 |
US $28 |
||
|
5
|
5
08331-3132A-000 CIRCLIP |
08331-3132A-000 |
from US $2.87 |
||
|
6
|
6
12660-10820-000 BALANCER SET,CRANK NO.2Balancer, crank no.2; |
12660-10820-000 |
US $167.07 |
||
|
7
|
7
12667-10G00-000 GEAR,CRANK BAL DRIVEN NO.2 |
12667-10G00-000 |
US $91.63 |
||
|
8
|
8
09440-07076-000 SPRING |
09440-07076-000 |
from US $5.49 |
||
|
9
|
9
08211-32522-000 WASHER |
08211-32522-000 |
US $28 |
||
|
10
|
10
08331-3132A-000 CIRCLIP |
08331-3132A-000 |
from US $2.87 |
||
|
11
|
11
09262-20122-000 BEARING(20X47X12)Bearing, crank balancer Bearing (20x47x12); |
09262-20122-000 |
from US $19.50 |
