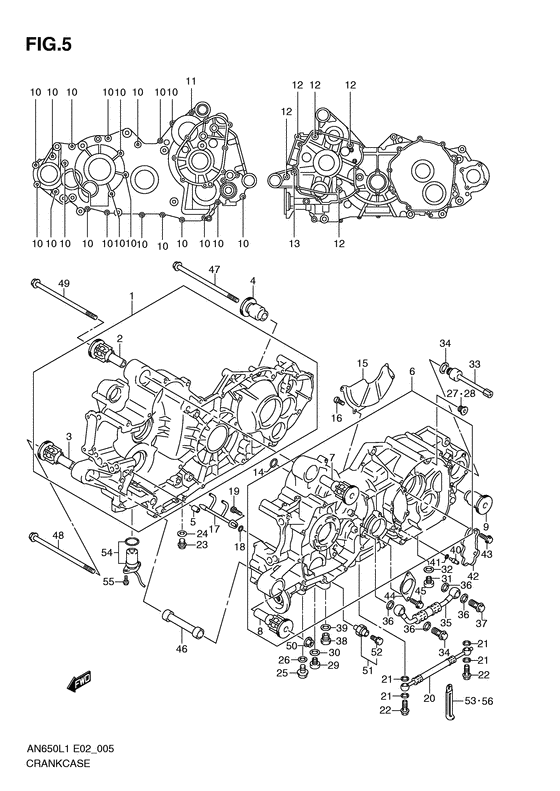

Crankcase Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11310-10831-000 CRANKCASE SET,R |
11310-10831-000 |
from US $464.64 |
||
|
2
|
2
11652-10G00-000 BUSH,ENGINE MOUNTINGBush, engine mtg Bush, engine mtg; |
11652-10G00-000 |
from US $24.55 |
||
|
3
|
3
11652-10G30-000 BUSH,ENGINE MOUNTINGBush, engine mtg Bush, engine mtg; |
11652-10G30-000 |
from US $15.26 |
||
|
4
|
4
11651-10G00-000 BUSH,ENGINE MOUNTING |
11651-10G00-000 |
from US $31.96 |
||
|
5
|
5
11319-33E50-000 PIN,CRANKCASEPin, crankcase; |
11319-33E50-000 |
from US $2.72 |
||
|
6
|
6
11320-10831-000 CRANKCASE SET,L |
11320-10831-000 |
from US $418.88 |
||
|
7
|
7
11652-10G00-000 BUSH,ENGINE MOUNTINGBush, engine mtg Bush, engine mtg; |
11652-10G00-000 |
from US $24.55 |
||
|
8
|
8
11652-10G30-000 BUSH,ENGINE MOUNTINGBush, engine mtg Bush, engine mtg; |
11652-10G30-000 |
from US $15.26 |
||
|
9
|
9
11651-10G00-000 BUSH,ENGINE MOUNTING |
11651-10G00-000 |
from US $31.96 |
||
|
10
|
10
01547-0635A-000 BOLTBolt; |
01547-0635A-000 |
from US $0.96 |
||
|
11
|
11
01547-0685A-000 BOLT |
01547-0685A-000 |
US $15.50 |
||
|
12
|
12
01550-0895A-000 BOLT |
01550-0895A-000 |
from US $1.82 |
||
|
13
|
13
09103-08097-000 BOLT(8X105)Bolt (8x105) Bolt (8x105); |
09103-08097-000 |
from US $1.67 |
||
|
14
|
14
09280-12009-000 O RING(D:1.9,ID:12.6)O ring (d:1.9,id:12.6); |
09280-12009-000 |
from US $1.76 |
||
|
15
|
15
11323-10G00-000 SEPARATOR,CRANKCASE OIL |
11323-10G00-000 |
US $5.12 |
||
|
16
|
16
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
17
|
17
11390-10G00-000 JET,PISTON COOLING |
11390-10G00-000 |
from US $32.80 |
||
|
18
|
18
09280-06005-000 O RING(D:1.9,ID:5.7)O ring O ring (d:1.9,id:5.7); |
09280-06005-000 |
from US $1.22 |
||
|
19
|
19
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
20
|
20
11282-10G10-000 PIPE,CRANKCASE OIL |
11282-10G10-000 |
from US $59.84 |
||
|
21
|
21
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl Gasket (10.1x16x1); |
09168-10007-000 |
from US $1.60 |
||
|
22
|
22
09360-10066-000 UNIONUnion; |
09360-10066-000 |
from US $6.46 |
||
|
23
|
23
09247-10008-000 PLUG(10X12)Plug, drain |
09247-10008-000 |
from US $1.52 |
||
|
24
|
24
09168-10002-000 GASKET(10X14X3.6)Gasket Gasket (10x14x3.6); |
09168-10002-000 |
from US $1.67 |
||
|
25
|
25
01550-0812A-000 BOLTPlug; |
01550-0812A-000 |
from US $0.91 |
||
|
26
|
26
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); |
09168-08016-000 |
from US $1.22 |
||
|
27
|
27
09248-16012-000 PLUG(16X8)Plug, t.d.c check Plug; |
09248-16012-000 |
from US $2.72 |
||
|
28
|
28
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2); |
09168-16002-000 |
from US $0.90 |
||
|
29
|
29
09247-14036-000 PLUG(14X20)Plug, oil drain (14x12) |
09247-14036-000 |
from US $1.98 |
||
|
30
|
30
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); |
09168-14002-000 |
— | ||
| replacement | |||||
|
30
|
30
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); |
09168-14004-000 |
from US $1.22 |
||
|
31
|
31
09248-12008-000 PLUG |
09248-12008-000 |
from US $5.20 |
||
|
32
|
32
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); |
09168-12002-000 |
from US $0.76 |
||
|
33
|
33
11326-10G00-000 PLUG,T/M OIL FILLER |
11326-10G00-000 |
from US $5.41 |
||
|
34
|
34
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket, t/m oil filler plug; |
09168-14002-000 |
— | ||
| replacement | |||||
|
34
|
34
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket, t/m oil filler plug; |
09168-14004-000 |
from US $1.22 |
||
|
35
|
35
11328-10G20-000 PIPE,OIL PUMP NO.2 |
11328-10G20-000 |
from US $66.24 |
||
|
36
|
36
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union Gasket (14x20x1.5); |
09168-14015-000 |
from US $1.17 |
||
|
37
|
37
09360-14012-000 BOLT,14X27Bolt, union (14x27) Union; |
09360-14012-000 |
from US $6.88 |
||
|
38
|
38
09248-14012-000
PLUG(14X12)
|
09248-14012-000 |
— | ||
| replacements | |||||
|
38
|
38
09248-14005-000
PLUG(14X12)
|
09248-14005-000 |
— | ||
|
38
|
38
09248-14011-000 PLUG |
09248-14011-000 |
from US $2.13 |
||
|
39
|
39
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); |
09168-14002-000 |
— | ||
| replacement | |||||
|
39
|
39
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); |
09168-14004-000 |
from US $1.22 |
||
|
40
|
40
09493-80005-000 JET(8)Jet; |
09493-80005-000 |
from US $11.20 |
||
|
41
|
41
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
42
|
42
11324-10G00-000 COVER,CRANKCASE,L |
11324-10G00-000 |
from US $12.44 |
||
|
43
|
43
09103-06172-000 BOLT(6X12)Bolt (6x12); Lh |
09103-06172-000 |
from US $2.65 |
||
|
44
|
44
11325-10G10-000 CAP,PRIMARY SHAFT L |
11325-10G10-000 |
from US $2.69 |
||
|
45
|
45
09103-06172-000 BOLT(6X12)Bolt (6x12); Lh |
09103-06172-000 |
from US $2.65 |
||
|
46
|
46
11611-10G00-000 SPACER,ENG MTG FR |
11611-10G00-000 |
US $13.95 |
||
|
47
|
47
09103-10239-000 BOLT(10X235)Bolt (10x235) Bolt (10x235); Lower |
09103-10239-000 |
from US $9.42 |
||
|
48
|
48
09103-10153-000 BOLT(10X305)Bolt (10x305) Bolt (10x305); Front |
09103-10153-000 |
from US $27.47 |
||
|
49
|
49
09103-10347-000 BOLT(10X275)Bolt, eng mtg upper Bolt (10x275); Upper |
09103-10347-000 |
from US $25.06 |
||
|
50
|
50
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
51
|
51
37820-33D10-000 SWITCH ASSY,OIL PRESSURE |
37820-33D10-000 |
US $28.02 |
||
| replacement | |||||
|
51
|
51
37820-33D11-000 SWITCH ASSYOIL PRESSURE |
37820-33D11-000 |
from US $24.32 |
||
|
52
|
52
37822-33D00-000 BOLT,OIL PRESSURE SWITCH |
37822-33D00-000 |
from US $3.19 |
||
|
53
|
53
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
54
|
54
37990-10G00-000 SWITCH ASSY,ENGINE OIL LEVEL |
37990-10G00-000 |
from US $116.66 |
||
|
55
|
55
01547-0616A-000 BOLTBolt; |
01547-0616A-000 |
from US $0.76 |
||
|
56
|
56
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
