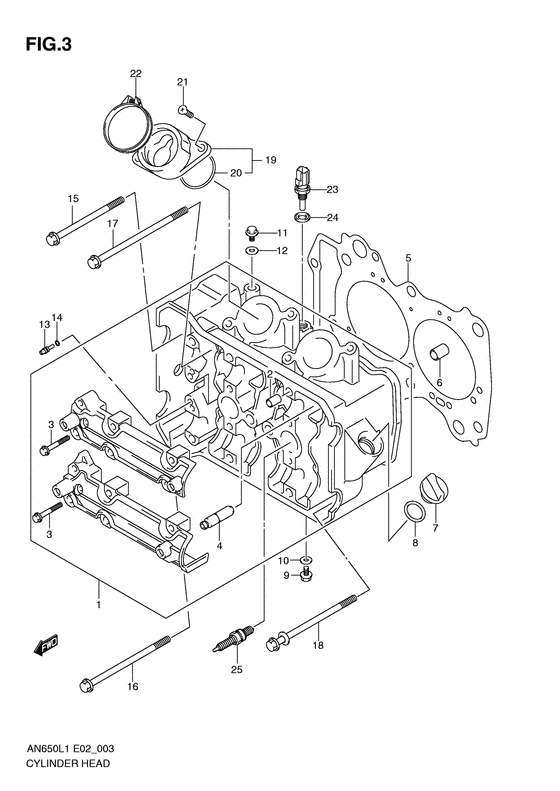

Cylinder head Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-10G10-000 HEAD ASSY,CYLINDER |
11100-10G10-000 |
from US $799.04 |
||
|
2
|
2
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
3
|
3
09103-06266-000 BOLT(6X40)Bolt, 6x40 Bolt (6x40); |
09103-06266-000 |
from US $1.12 |
||
|
4
|
4
11115-33D71-000 GUIDE,VALVE(OS:0.3)Guide, valve (os:0.3) Guide, valve (os:0.3); Opt |
11115-33D71-000 |
from US $21.34 |
||
|
5
|
5
11141-10G00-000 GASKET,CYLINDER HEAD |
11141-10G00-000 |
from US $46.64 |
||
|
6
|
6
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
7
|
7
11971-25D00-000 PLUG,ENGINE OIL FILLERPlug, eng oil filler Plug, engine oil filler; |
11971-25D00-000 |
from US $2.46 |
||
|
8
|
8
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); |
09280-17003-000 |
from US $1.51 |
||
|
9
|
9
09103-06222-000 BOLT(6X12)Bolt, oil gallery (6x12) Bolt (6x12); |
09103-06222-000 |
from US $1.12 |
||
|
10
|
10
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
11
|
11
09103-08421-000 BOLT(8X9.5)Bolt (8x9.5); |
09103-08421-000 |
from US $1.85 |
||
|
12
|
12
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); |
09168-08016-000 |
from US $1.22 |
||
|
13
|
13
09493-28010-000 JET,AIR (14)Jet, oil gallery |
09493-28010-000 |
from US $6.72 |
||
|
14
|
14
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
15
|
15
11161-10G50-000 BOLT(L:110)Bolt, cylinder head (l:110); |
11161-10G50-000 |
US $2.13 |
||
|
16
|
16
09103-08212-000 BOLT(8X135)Bolt (8x135) Bolt (8x135); |
09103-08212-000 |
from US $9.89 |
||
|
17
|
17
09116-10130-000 BOLT(10X150)Bolt (10x150); |
09116-10130-000 |
US $56.70 |
||
|
18
|
18
09116-10133-000 BOLT(10X155)Bolt (10x155); |
09116-10133-000 |
from US $6.81 |
||
|
19
|
19
13101-10G00-000
PIPE ASSY,INTAKE
|
13101-10G00-000 |
— | ||
| replacement | |||||
|
19
|
19
13101-10G01-000 Pipe Assy,intake |
13101-10G01-000 |
from US $43.20 |
||
|
20
|
20
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); |
09280-40010-000 |
— | ||
| replacement | |||||
|
20
|
20
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); |
09280-40020-000 |
from US $4.59 |
||
|
21
|
21
02122-0616B-000 SCREWScrew, intake pipe Screw; |
02122-0616B-000 |
from US $0.80 |
||
|
22
|
22
09402-58208-000 CLAMP |
09402-58208-000 |
from US $2.29 |
||
|
23
|
23
13650-10G00-000 Sensor,water TempSensor, water temp; |
13650-10G00-000 |
from US $25.84 |
||
|
24
|
24
09168-12017-000 GASKET(12X17X1)Gasket, drain plug Gasket (12x17x1); |
09168-12017-000 |
from US $1.06 |
||
|
25
|
25
09482-00456-000 PLUG,SPARK NGK(CR8E)Spark plug (cr8e); Ngk |
09482-00456-000 |
from US $10.10 |
||
|
25
|
25
09482-00457-000 PLUG,SPARK(U24ESR-N)Spark plug (u24esr-n); Denso |
09482-00457-000 |
from US $4.68 |
||
|
25
|
25
09482-00516-000 PLUG,SPARK(CR7E)Spark plug (cr7e); Opt, ngk |
09482-00516-000 |
from US $9.69 |
||
|
25
|
25
09482-00515-000 PLUG,SPARK(U22ESR-N)Spark plug (u22esr-n); Opt, denso |
09482-00515-000 |
US $9.30 |
||
|
25
|
25
09482-00458-000 PLUG,SPARK(CR9E)Plug, spark (cr9e) Spark plug (cr9e); Opt, ngk |
09482-00458-000 |
from US $9.69 |
||
|
25
|
25
09482-00459-000 PLUG,SPARK(U27ESR-N)Spark plug (u27esr-n); Opt, denso |
09482-00459-000 |
from US $9.49 |
||
