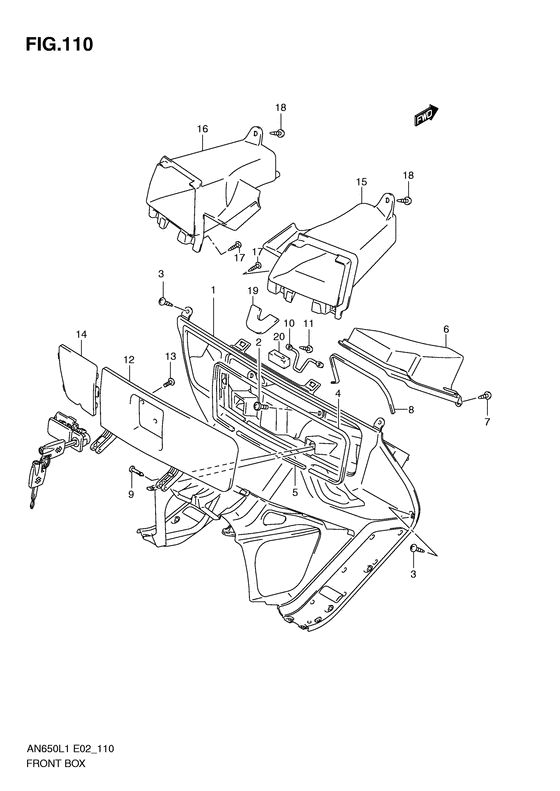

Front box (An650al1 e24) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92110-10GA0-Y0J BOX,FRBox, front (gray); |
92110-10GA0-Y0J |
from US $257.60 |
||
|
2
|
2
09139-06120-000 SCREW(6X16)Screw Screw (6x16); |
09139-06120-000 |
from US $1.22 |
||
|
3
|
3
09132-05053-000 SCREW(5X16)Screw (5x16); |
09132-05053-000 |
from US $0.76 |
||
|
4
|
4
92114-14F01-000 CUSHION,FR BOX NO,1Cushion, no.1; |
92114-14F01-000 |
from US $5.15 |
||
|
5
|
5
92114-14F01-000 CUSHION,FR BOX NO,1Cushion, no.2; |
92114-14F01-000 |
from US $5.15 |
||
|
6
|
6
92112-10G00-000 COVER,FR BOX INNER |
92112-10G00-000 |
from US $24.29 |
||
|
7
|
7
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
92116-05H00-000 CUSHION,FR BOX INNER |
92116-05H00-000 |
from US $3.31 |
||
|
9
|
9
73423-50G00-000 PIN,GLOVE BOX HINGEPin, box Pin, front box; |
73423-50G00-000 |
from US $2.43 |
||
|
10
|
10
92171-10G01-000 STRIKER,FR BOX |
92171-10G01-000 |
from US $3.15 |
||
|
11
|
11
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
92120-10G00-Y0J LID,FR BOXLid, front box (gray); |
92120-10G00-Y0J |
from US $55.94 |
||
|
13
|
13
02142-0512B-000 SCREWScrew; |
02142-0512B-000 |
from US $0.80 |
||
|
14
|
14
92161-10G00-Y0J LID,CLNR MAINTLid, maintenance (gray); |
92161-10G00-Y0J |
from US $20.52 |
||
|
15
|
15
92141-10G00-000 BOX,FR PANEL,R |
92141-10G00-000 |
from US $25.60 |
||
|
16
|
16
92151-10G00-000 BOX,FR PANEL,L |
92151-10G00-000 |
from US $24.32 |
||
|
17
|
17
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
18
|
18
03541-0616B-000 SCREW |
03541-0616B-000 |
from US $3.77 |
||
|
19
|
19
92116-10G00-000 CUSHION,FR BOX NO.3 |
92116-10G00-000 |
from US $4.16 |
||
|
20
|
20
92117-10G00-000 CUSHION,FR BOX NO.4Cushion, no.3 Cushion, no.4; |
92117-10G00-000 |
from US $5.59 |
