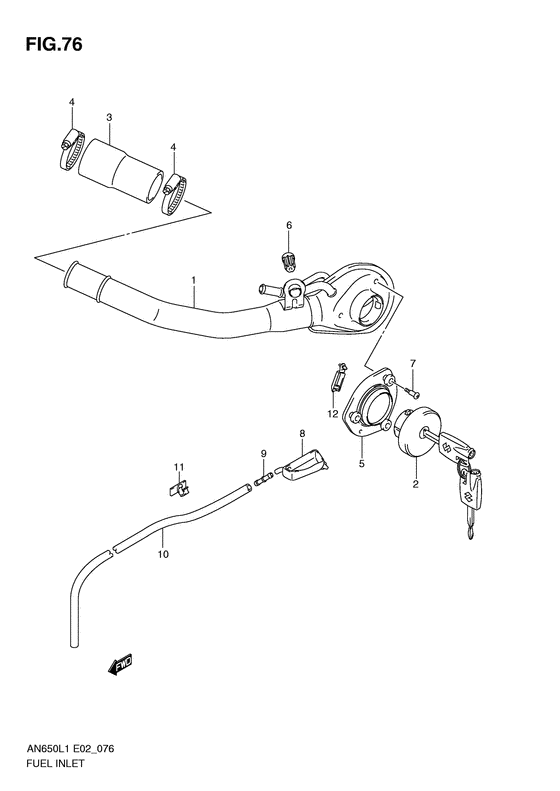

Fuel inlet (An650al1 e2) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44190-10G10-000
INLET,FUEL TANK
|
44190-10G10-000 |
— | ||
|
2
|
2
44200-10841-000 CAP SET,FUEL TANK |
44200-10841-000 |
from US $91.26 |
||
|
3
|
3
44422-10G00-000 HOSE,FUEL TANK FILLER |
44422-10G00-000 |
from US $37.90 |
||
|
4
|
4
09402-50512-000 CLAMP |
09402-50512-000 |
US $46.40 |
||
|
5
|
5
44261-10G10-000 PACKING,FUEL TANK INLET |
44261-10G10-000 |
from US $17.35 |
||
|
6
|
6
44264-10G00-000 BAND,FUEL TANK INLET |
44264-10G00-000 |
US $4.64 |
||
|
7
|
7
09139-05078-000 SCREW(5X16.4)Screw (5x16.4); |
09139-05078-000 |
from US $5.59 |
||
|
8
|
8
44262-10G10-000 TRAY,FUEL TANK INLET |
44262-10G10-000 |
from US $10.67 |
||
|
9
|
9
09367-08001-000 JOINTJoint, fuel hose |
09367-08001-000 |
from US $1.98 |
||
|
10
|
10
44423-10G00-000
HOSE,FUEL DRAIN
|
44423-10G00-000 |
— | ||
| replacement | |||||
|
10
|
10
44423-10G01-000 Hose |
44423-10G01-000 |
US $9.16 |
||
|
11
|
11
09403-10318-000 CLAMP |
09403-10318-000 |
from US $3.43 |
||
|
12
|
12
44263-10G10-000 CUSHION,FUEL TANK INLET |
44263-10G10-000 |
from US $16.08 |
||
