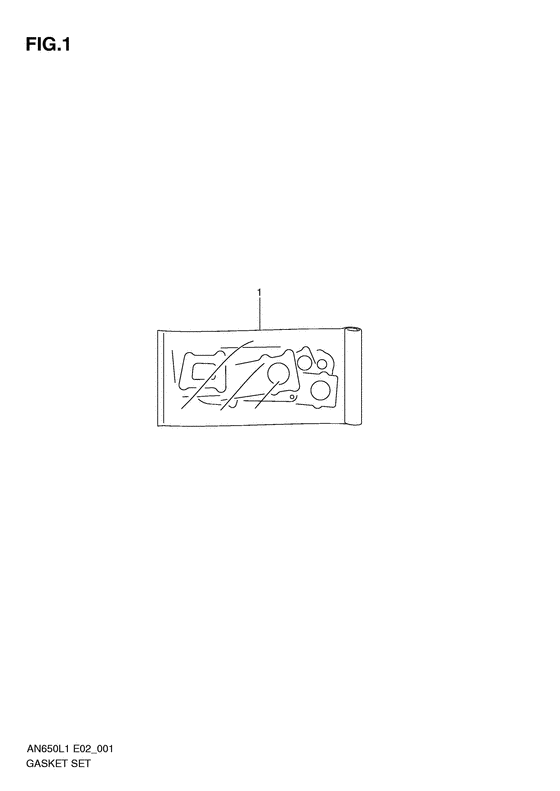

Gasket set Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-10810-000 GASKET SETOpt |
11401-10810-000 |
from US $128.44 |
||
|
2
|
2
11141-10G00-000 GASKET,CYLINDER HEADNot illustrated |
11141-10G00-000 |
from US $46.64 |
||
|
3
|
3
11173-10G00-000 GASKET,CYL HEAD COVERGasket, cyl head cover Not illustrated |
11173-10G00-000 |
from US $23.74 |
||
|
4
|
4
11177-10G00-000 GASKET,BREATHER COVERNot illustrated |
11177-10G00-000 |
from US $1.91 |
||
|
5
|
5
11241-10G00-000 GASKET,CYLINDERNot illustrated |
11241-10G00-000 |
from US $11.44 |
||
|
6
|
6
11482-10G00-000 GASKET,CLUTCH COVERNot illustrated |
11482-10G00-000 |
from US $8.82 |
||
|
7
|
7
11483-10G00-000 GASKET,MAGNETO COVERNot illustrated |
11483-10G00-000 |
from US $10.03 |
||
|
8
|
8
11491-10G00-000 GASKET,STARTER CLUTCH COVER(NAGasket, starter cl cover Not illustrated |
11491-10G00-000 |
from US $5.12 |
||
|
9
|
9
14181-22D01-000 GASKET,EXHAUST PIPEGasket, exhaust pipe; Not illustrated |
14181-22D01-000 |
from US $6.08 |
||
|
10
|
10
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); Not illustrated |
09168-12002-000 |
from US $0.76 |
||
|
11
|
11
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); Not illustrated |
09168-14002-000 |
— | ||
| replacement | |||||
|
11
|
11
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); Not illustrated |
09168-14004-000 |
from US $1.22 |
||
|
12
|
12
09280-22001-000 O RING(D:2.4,ID:21.8)O-ring (d:2.4,id:21.8) O ring (d:2.4,id:21.8); Not illustrated |
09280-22001-000 |
from US $1.67 |
||
|
13
|
13
09280-33004-000 O RING(D:3.1,ID:32.7)O ring (d:3.1,id:32.7); Not illustrated |
09280-33004-000 |
from US $1.67 |
||
|
14
|
14
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); Not illustrated |
09280-40010-000 |
— | ||
| replacement | |||||
|
14
|
14
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); Not illustrated |
09280-40020-000 |
from US $4.59 |
||
