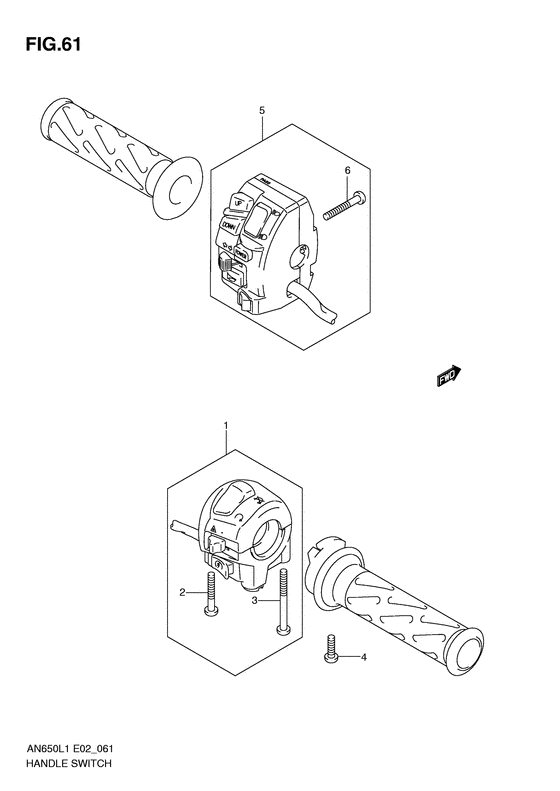

Handle switch (An650l1 e19) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37200-10G40-000
Switch assy, handle, rh
|
37200-10G40-000 |
— | ||
| replacement | |||||
|
1
|
1
37200-10G41-000 SWITCH ASSY,HANDLE,R |
37200-10G41-000 |
from US $121.44 |
||
|
2
|
2
02112-0530B-000 SCREW |
02112-0530B-000 |
from US $0.80 |
||
|
3
|
3
02112-0550B-000 SCREWScrew, bracket |
02112-0550B-000 |
from US $0.76 |
||
|
4
|
4
02112-0510A-000 SCREW |
02112-0510A-000 |
from US $0.76 |
||
|
5
|
5
37400-10G10-000 SWITCH ASSY,HANDLE,L |
37400-10G10-000 |
from US $262.24 |
||
|
6
|
6
02112-0535B-000 SCREW |
02112-0535B-000 |
from US $0.80 |
||
