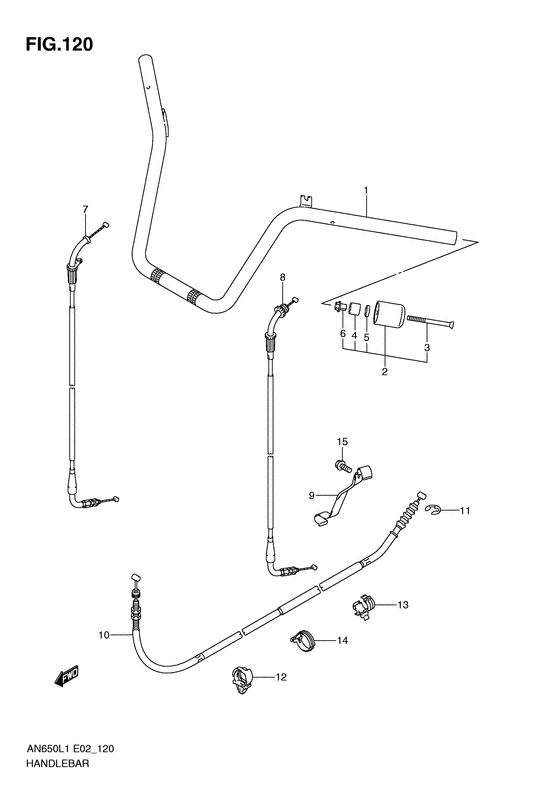

Handlebar (An650al1 e19) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-10G40-000 HANDLEBAR |
56110-10G40-000 |
from US $110.03 |
||
|
2
|
2
56200-10881-000
Balancer set, handlebar
|
56200-10881-000 |
— | ||
| replacements | |||||
|
2
|
2
56200-10882-000
BALANCER SET,HANDLEBAR
|
56200-10882-000 |
— | ||
|
2
|
2
56200-10883-000 Balancer Set,handlebar |
56200-10883-000 |
from US $43.06 |
||
|
3
|
3
02122-06707-000 SCREW |
02122-06707-000 |
from US $5.24 |
||
|
4
|
4
56272-10G00-000
EXPANDER,HANDLE BALANCER
|
56272-10G00-000 |
— | ||
| replacement | |||||
|
4
|
4
56272-10G01-000 Expander,handle Balancer |
56272-10G01-000 |
US $7.55 |
||
|
5
|
5
09160-06131-000 WASHER(6.5X16X4)Washer (6.5x16x4); |
09160-06131-000 |
from US $0.76 |
||
|
6
|
6
56273-10G10-000 NUT,HANDLE BALANCER |
56273-10G10-000 |
from US $4.10 |
||
|
7
|
7
58300-10G00-000
Cable assy, throttle no.1
|
58300-10G00-000 |
— | ||
| replacement | |||||
|
7
|
7
58300-10G01-000 Cable assy, throttle no.1 |
58300-10G01-000 |
from US $28.48 |
||
|
8
|
8
58300-10G10-000
Cable assy, throttle no.2
|
58300-10G10-000 |
— | ||
| replacement | |||||
|
8
|
8
58300-10G11-000 Cable assy, throttle no.2 |
58300-10G11-000 |
from US $29.78 |
||
|
9
|
9
58621-10G00-000 GUIDE,BRAKE LOCK CABLE |
58621-10G00-000 |
from US $10.49 |
||
|
10
|
10
58810-10G10-000 CABLE,BRAKE LOCK |
58810-10G10-000 |
from US $84.64 |
||
|
11
|
11
58822-10G00-000 STOPPER,BRAKE LOCK CABLE |
58822-10G00-000 |
from US $1.99 |
||
|
12
|
12
09403-14307-000 CLAMP |
09403-14307-000 |
US $21.30 |
||
|
13
|
13
09403-15405-000 CLAMPClamp, wiring harness |
09403-15405-000 |
from US $3.71 |
||
|
14
|
14
09403-17402-000 CLAMP |
09403-17402-000 |
from US $3.87 |
||
|
15
|
15
01547-0612A-000 BOLTBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
