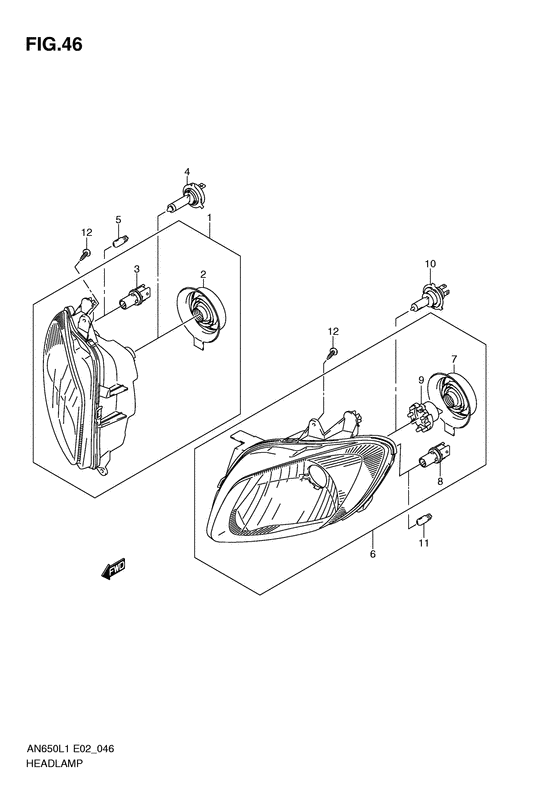

Headlamp (An650l1 e19) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-10G50-999 HEADLAMP ASSY,R |
35100-10G50-999 |
US $253.92 |
||
|
2
|
2
35173-42E00-000 COVERCover, socket Cover socket; |
35173-42E00-000 |
from US $15.86 |
||
|
3
|
3
36118-78F00-000 SOCKET,POSITION LAMP |
36118-78F00-000 |
US $9.90 |
||
|
4
|
4
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v60/55w); |
09471-12060-000 |
from US $39.19 |
||
|
5
|
5
09471-12081-000
Bulb (12v,5w)
Bulb (12v 5w); |
09471-12081-000 |
— | ||
| replacement | |||||
|
5
|
5
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v 5w); |
09471-12216-000 |
from US $2.84 |
||
|
6
|
6
35300-10G51-999 HEADLAMP ASSY,L |
35300-10G51-999 |
US $253.92 |
||
|
7
|
7
35173-42E00-000 COVERCover, socket Cover, socket; |
35173-42E00-000 |
from US $15.86 |
||
|
8
|
8
36118-78F00-000 SOCKET,POSITION LAMP |
36118-78F00-000 |
US $9.90 |
||
|
9
|
9
35175-24F00-000 ADAPTER ASSYAdaptor assy; |
35175-24F00-000 |
from US $12.14 |
||
|
10
|
10
09471-12188-000 BULB(12V55W/H7/PX26D/PHILIPS)Bulb (12v55w,h7) Bulb (12v55w); |
09471-12188-000 |
from US $18.59 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
Bulb (12v 5w); |
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v 5w); |
09471-12216-000 |
from US $2.84 |
||
|
12
|
12
03541-0516B-000 SCREWScrew; |
03541-0516B-000 |
from US $0.76 |
||
