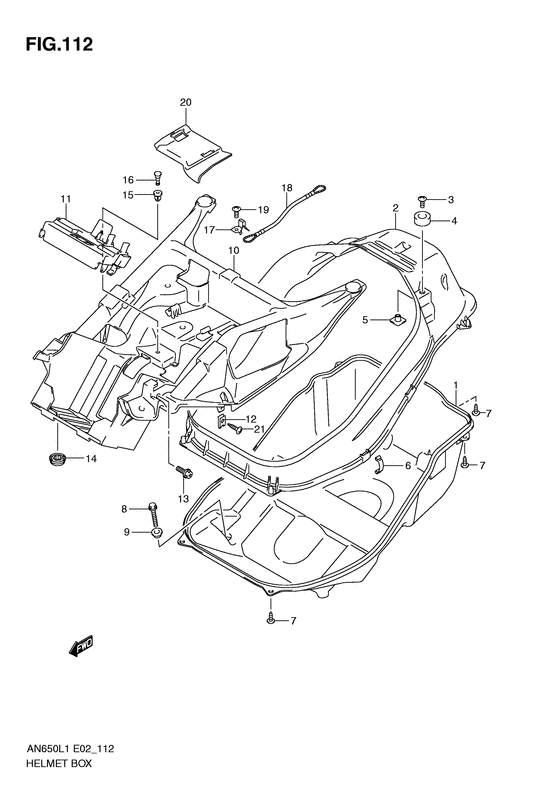

Helmet box Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92211-10G10-000 BOX,HELMET NO.1 |
92211-10G10-000 |
from US $274.16 |
||
|
2
|
2
92221-10G10-000 BOX,HELMET NO.2 |
92221-10G10-000 |
US $121.44 |
||
|
3
|
3
09125-06069-000 SCREW(6X12)Screw (6x12); |
09125-06069-000 |
from US $3.16 |
||
|
4
|
4
45149-04A00-000 CUSHION,TAIL COVER UPRCushion, upper Cushion, upper; |
45149-04A00-000 |
from US $1.52 |
||
|
5
|
5
92222-10G01-000 NUT,HELMET BOX |
92222-10G01-000 |
from US $3.02 |
||
|
6
|
6
92214-14G00-000 CLAMP,HELMET BOX |
92214-14G00-000 |
US $2.91 |
||
|
7
|
7
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
01547-0640B-000 Bolt |
01547-0640B-000 |
from US $0.91 |
||
|
9
|
9
09169-06073-000 WASHERWasher; |
09169-06073-000 |
from US $1.67 |
||
|
10
|
10
92212-10G00-Y0J COVER,HELMET BOX FR NO.1(GRAY)Cover, box front no.1 (gray); |
92212-10G00-Y0J |
from US $81.33 |
||
|
11
|
11
92213-10G01-000 COVER,HELMET BOX FR NO.2 |
92213-10G01-000 |
from US $14.68 |
||
|
12
|
12
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
13
|
13
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
|
14
|
14
09320-09046-000 CUSHION |
09320-09046-000 |
from US $9.96 |
||
|
15
|
15
09409-08329-000 GROMMETClip Grommet; |
09409-08329-000 |
from US $1.06 |
||
|
16
|
16
09409-08330-000 PLUNGERGrommet Plunger; |
09409-08330-000 |
from US $1.12 |
||
|
17
|
17
95723-10G00-000 STOPPER,HELMET HOLDER |
95723-10G00-000 |
from US $4.38 |
||
|
18
|
18
95740-10G00-000
CABLE,HELMET LOCK
|
95740-10G00-000 |
— | ||
| replacement | |||||
|
18
|
18
95740-10G01-000 Cable,helmet Lock |
95740-10G01-000 |
from US $18.36 |
||
|
19
|
19
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
20
|
20
92215-10G00-000 COVER,HELMET BOX FR NO.3 |
92215-10G00-000 |
US $10.67 |
||
|
21
|
21
09132-05053-000 SCREW(5X16)Screw (5x16); |
09132-05053-000 |
from US $0.76 |
||
