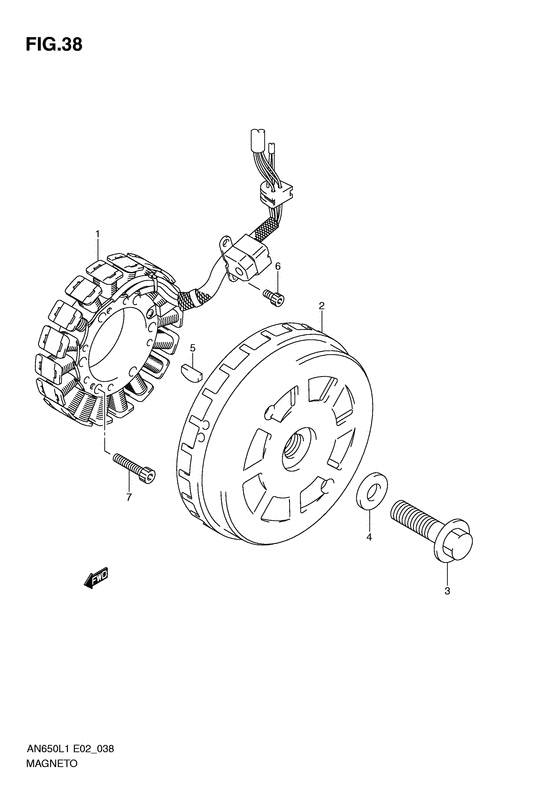

Magneto Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-10G00-000
Stator assy
|
32101-10G00-000 |
— | ||
| replacement | |||||
|
1
|
1
32101-10G10-000 STATOR ASSY |
32101-10G10-000 |
from US $658.24 |
||
|
2
|
2
32102-10G00-000 ROTOR ASSY |
32102-10G00-000 |
from US $612.48 |
||
|
3
|
3
09103-14001-000 BOLT(14X43)Bolt, rotor Bolt (14x43); |
09103-14001-000 |
from US $6.38 |
||
|
4
|
4
09160-14021-000 WASHER(14X29X4)Washer, rotor (14x29x4) Washer (14x29x4); |
09160-14021-000 |
from US $9.03 |
||
|
5
|
5
09420-05007-000 KEY |
09420-05007-000 |
from US $3.80 |
||
|
6
|
6
07130-0510B-000 BOLTBolt, sensor |
07130-0510B-000 |
from US $0.96 |
||
|
7
|
7
07130-0630B-000 BoltBolt, magneto stator |
07130-0630B-000 |
from US $3.20 |
||
