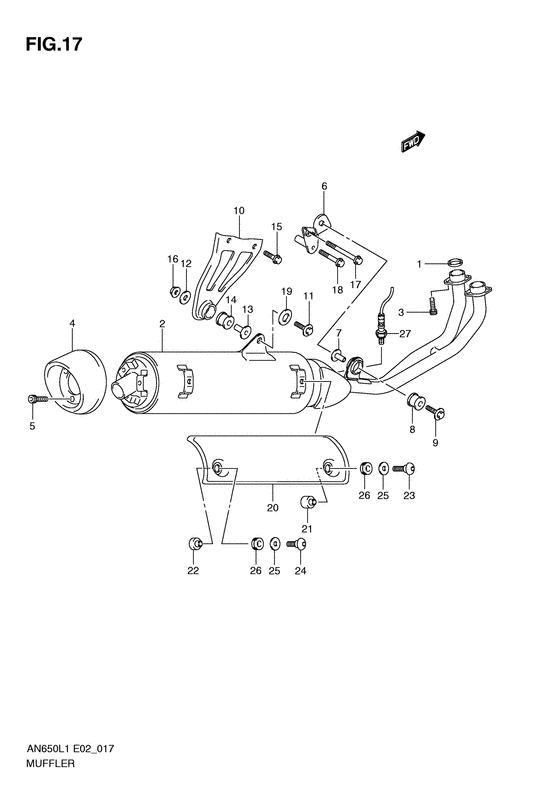

Muffler (An650al1 e24) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-22D01-000 GASKET,EXHAUST PIPEGasket, exhaust pipe; |
14181-22D01-000 |
from US $6.08 |
||
|
2
|
2
14305-10GG0-000 MUFFLER |
14305-10GG0-000 |
from US $1,261.44 |
||
|
3
|
3
09106-08165-000 BOLT(8X25)Bolt, exhaust pipe Bolt (8x25); |
09106-08165-000 |
from US $2.28 |
||
|
4
|
4
14791-10G10-000 COVER,MUFFLER RR |
14791-10G10-000 |
from US $145.73 |
||
|
5
|
5
09106-06078-000 BOLT(6X15)Bolt (6x15) Bolt (6x15); |
09106-06078-000 |
from US $1.69 |
||
|
6
|
6
14410-10G00-000 BRACKET,MUFFLER SUPPORT FR |
14410-10G00-000 |
from US $30.36 |
||
|
7
|
7
09180-08156-000 SPACER(8.6X12X27.1)Spacer (8.6x12x27.1); |
09180-08156-000 |
from US $2.56 |
||
|
8
|
8
09320-12049-000 CUSHION |
09320-12049-000 |
from US $6.54 |
||
|
9
|
9
09116-08106-000 BOLT(8X45)Bolt (8x45); |
09116-08106-000 |
from US $3.52 |
||
|
10
|
10
14470-10G10-000 BRACKET,MUFFLER SUPPORT RR |
14470-10G10-000 |
from US $33.12 |
||
|
11
|
11
09106-08164-000 BOLT(8X45)Bolt (8x45); |
09106-08164-000 |
from US $2.40 |
||
|
12
|
12
09160-08146-000 WASHER(8.5X33X1.5)Washer, muffler support Washer (8.5x33x1.5); |
09160-08146-000 |
from US $1.52 |
||
|
13
|
13
09180-08156-000 SPACER(8.6X12X27.1)Spacer (8.6x12x27.1); |
09180-08156-000 |
from US $2.56 |
||
|
14
|
14
09320-12049-000 CUSHION |
09320-12049-000 |
from US $6.54 |
||
|
15
|
15
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
17
|
17
09103-10063-000 BOLT(10X115)Bolt, muffler bracket & cvt Bolt (10x115); |
09103-10063-000 |
from US $10.03 |
||
|
18
|
18
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
19
|
19
09160-08142-000 WASHER(8.5X28X1.5)Washer (8.5x28x1.5); |
09160-08142-000 |
from US $4.22 |
||
|
20
|
20
14781-10G11-000 COVER,MUFFLER |
14781-10G11-000 |
from US $276 |
||
|
21
|
21
14788-10G10-000 SPACER,MUFFLER COVER FR |
14788-10G10-000 |
from US $11 |
||
|
22
|
22
14789-10G10-000 SPACER,MUFFLER COVER RR |
14789-10G10-000 |
from US $11 |
||
|
23
|
23
09139-06029-000 SCREW(6X25)Screw, front Screw (6x25); |
09139-06029-000 |
from US $1.67 |
||
|
24
|
24
09139-06028-000 SCREW(6X20)Screw, rear Screw (6x20); |
09139-06028-000 |
from US $1.92 |
||
|
25
|
25
09160-06036-000 WASHER(6.5X18X1.5)Washer, 6.5x18x1.5 Washer (6.5x18x1.5); |
09160-06036-000 |
from US $1.60 |
||
|
26
|
26
09320-08066-000 CUSHION |
09320-08066-000 |
from US $4.42 |
||
|
27
|
27
18213-10G11-000 SENSOR,OXYGEN |
18213-10G11-000 |
from US $292.56 |
