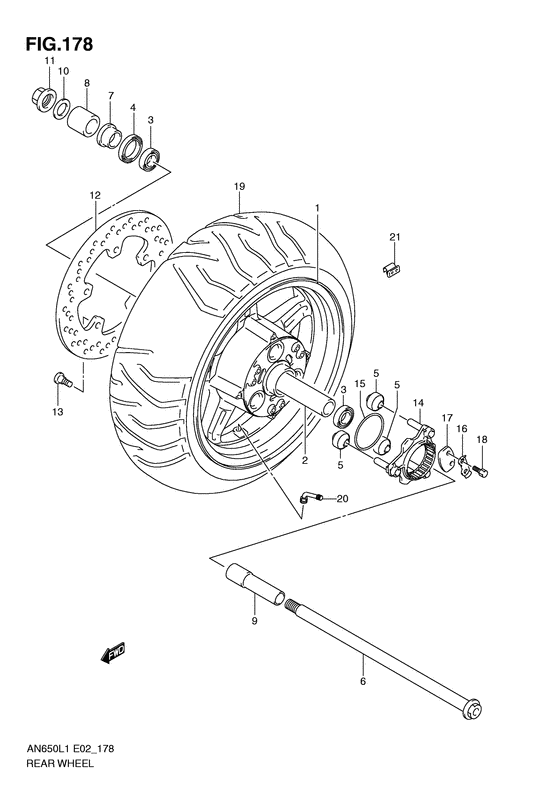

Rear wheel (An650l1 e19) Diagram Suzuki AN650 Burgman (European analogue of "SkyWave")
- Year
- 2011
- Model code
- AN650L1(E2) L1
- Engine Capacity
- 650
- Model
- AN650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-10G10-YD8 WHEEL,RR(14M/CXMT4.50)Wheel, rear (14m/cxmt4.50) (silver) Wheel, rear (14m/cxmt4.50) (silver); |
64111-10G10-YD8 |
from US $725.12 |
||
|
2
|
2
64731-10G00-000 SPACER,RR HUB BEARING |
64731-10G00-000 |
from US $21.34 |
||
|
3
|
3
08123-62047-000
BEARING
|
08123-62047-000 |
— | ||
| replacement | |||||
|
3
|
3
08123-6204B-000 Bearing,rear Wheel Hub |
08123-6204B-000 |
from US $12.31 |
||
|
4
|
4
09285-28001-000
SEAL,OIL(28X47X7)
Oil seal (28x47x7); |
09285-28001-000 |
— | ||
| replacement | |||||
|
4
|
4
09285-28004-000 OIL SEAL28x52x16 Oil seal (28x47x7); |
09285-28004-000 |
from US $9.73 |
||
|
5
|
5
09319-12062-000 BUSHBush; |
09319-12062-000 |
from US $8.82 |
||
|
6
|
6
64711-10G00-000 AXLE,RR |
64711-10G00-000 |
US $66.24 |
||
|
7
|
7
64741-10F00-000 SPACER,RR AXLE,RSpacer, rear axle rh no.1 Spacer, rear axle rh no.2; |
64741-10F00-000 |
from US $9.44 |
||
|
8
|
8
64751-10G10-000 SPACER,RR AXLE,R NO1 |
64751-10G10-000 |
from US $8.17 |
||
|
9
|
9
64772-10G00-000 SPACER,RR AXLE,L |
64772-10G00-000 |
from US $21.34 |
||
|
10
|
10
08322-0118B-000 WASHER |
08322-0118B-000 |
from US $3.69 |
||
|
11
|
11
08319-3118A-000 NUT |
08319-3118A-000 |
from US $8.79 |
||
|
12
|
12
69211-10G10-000 DISC,RR BRAKE |
69211-10G10-000 |
from US $213.44 |
||
|
13
|
13
09106-08160-000 BOLT(8X21)Bolt, brake disc Bolt (8x21); |
09106-08160-000 |
from US $1.67 |
||
|
14
|
14
64680-10G20-000 JOINT ASSY,RR HUB DRIVEN |
64680-10G20-000 |
from US $149.78 |
||
|
15
|
15
09280-65003-000 O RING(D:2.1,ID:65)O ring, driven joint O ring (d:2.1,id:65); |
09280-65003-000 |
from US $5.07 |
||
|
16
|
16
09169-06030-000 WASHERWasher, joint |
09169-06030-000 |
from US $4.28 |
||
|
17
|
17
64677-10G00-000 WASHER,THRUST |
64677-10G00-000 |
from US $3.90 |
||
|
18
|
18
09119-06049-000 BOLT(6X16) |
09119-06049-000 |
from US $2.40 |
||
|
19
|
19
65110-10G10-000 TIRE,RRTire, rear, 160/60r14m/c 65h (bridgestone); Th01 r radial |
65110-10G10-000 |
from US $270.48 |
||
|
20
|
20
43130-39H00-000 VALVE ASSY,WHEEL RIMValve assy, wheel rim (tr412); |
43130-39H00-000 |
from US $30.73 |
||
|
21
|
21
43222-73H10-000 WEIGHT,WHEEL BALANCE 10GBalancer, wheel (10g) Balancer, wheel (10g); |
43222-73H10-000 |
from US $2.72 |
||
|
21
|
21
43224-73H10-000 WEIGHT,WHEEL BALANCE 20GBalancer, wheel (20g) Balancer, wheel (20g); |
43224-73H10-000 |
from US $3.02 |
||
|
21
|
21
43226-73H10-000 WEIGHT,WHEEL BALANCE 30GBalancer, wheel (30g) Balancer, wheel (30g); |
43226-73H10-000 |
from US $3.53 |
||
